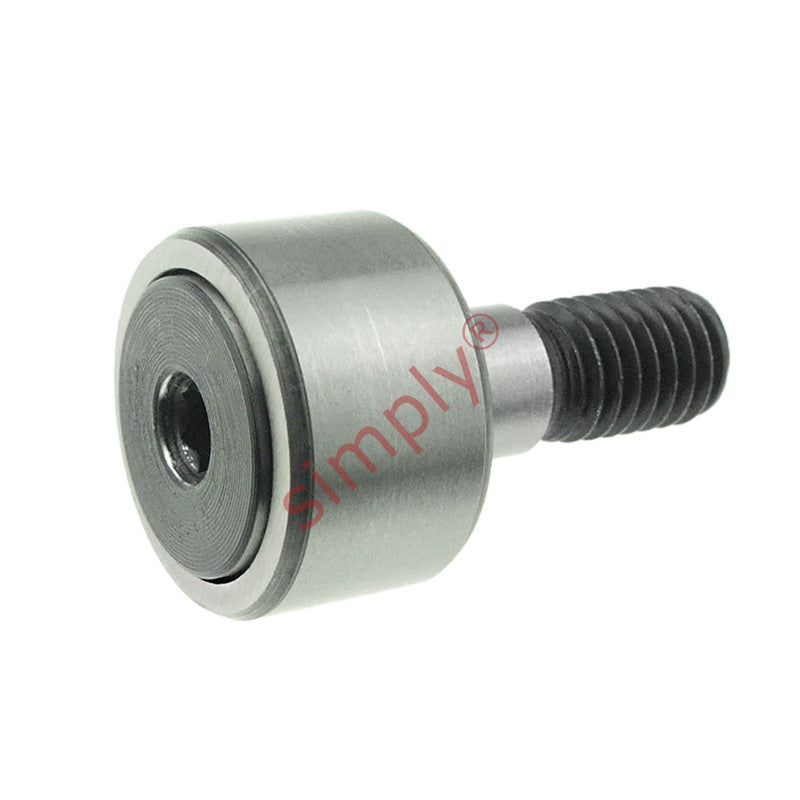

IKO KRV80PPA Contact Sealed Crowned Cam Follower 80x35x30 M30x1.5 Thread
New

SKU: KRV80PPA-MB-IKO

IKO KRV80PPA Contact Sealed Crowned Cam Follower 80x35x30 M30x1.5 Thread

$251.11 ex VAT
$251.11
ex VAT
In stock

Quantity Price Breaks

5+ $248.60
10+ $238.55
20+ $233.53
50+ $226.00
100+ $220.98
500+ $208.42
1000+ $175.78
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO KRV80PPA Contact Sealed Crowned Cam Follower 80x35x30 M30x1.5 Thread
SKU: KRV80PPA-MB-IKO

IKO KRV80PPA Contact Sealed Crowned Cam Follower 80x35x30 M30x1.5 Thread

$251.11 ex VAT
$251.11
ex VAT

Description

KRV-PP Series Crowned Cam Followers: These cam followers incorporate a full complement needle roller assembly allowing for maximum load support. Manufactured with a needle roller design that permits a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed-on side washer. Also, these cam followers are supplied with contact seals on both sides. Because of the high load tolerance, these cam followers cannot operate continuously at the same high speeds as the KR series.
Benefits: Very high load capacity, shock resistant, contact sealed on both sides.

Technical

D = 80mm
C = 35mm
d(Stud Diameter) = 30mm
B = 100mm
B1 = 63mm
B2 = 15mm
C1 = 1mm
d1 = 53mm
G = M30x1.5
G1 = 32mm
M1 = 4mm
r min = 1.1mm
SW = 14mm
Dynamic load = 45700 N
Static load = 114000 N
Fatigue load limit Pu = 14000 N
Radial dynamic load = 122000 N
Radial static load = 176000 N
Speed rating = 850 rpm
Weight = 1640 g
