SKU: KRE19PPA-EU

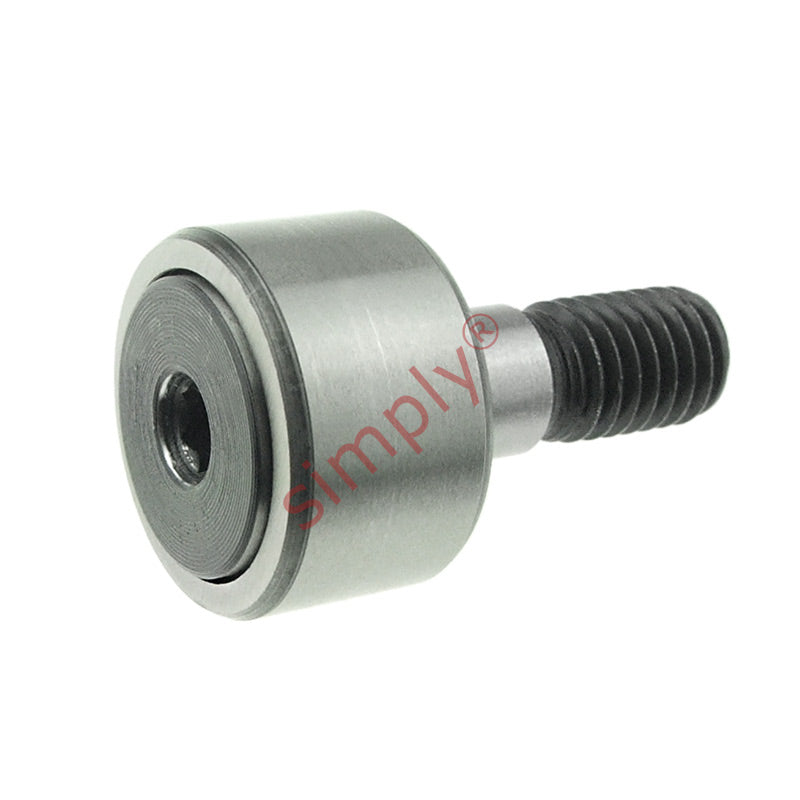

Budget KRE19PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 19x11x8 M8 Thread
- Regular price
- $49.93 ex VAT
- Sale price
- $49.93
- Regular price
-
In stock
Quantity Price Breaks
10
$44.44
19
$41.94
29
$41.44
39
$40.94
49
$40.44
74
$39.94
99
$37.45
199
$36.95
249
$36.45
499
$35.95
999
$34.95
SKU:
KRE19PPA-EU
Budget KRE19PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 19x11x8 M8 Thread
- Regular price
- $49.93 ex VAT
- Sale price
- $49.93
- Regular price
-
Description
KRE-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on-side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.

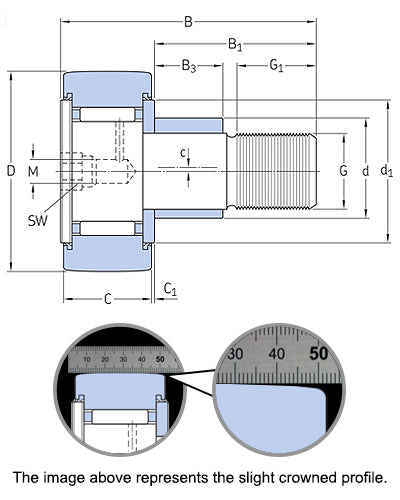

Technical
| D | = | 19mm |
| C | = | 11mm |
| d (Stud Diameter) | = | 11mm |
| B | = | 32mm |
| B1 | = | 20mm |
| C1 | = | 0.6mm |
| d1 | = | 15mm |
| G | = | M8 |
| G1 | = | 10mm |
| M | = | 4mm |
| r min | = | 0.15mm |
| Eccentric stud c | = | 0.5mm |
| B3 | = | 9mm |
| Dynamic load | = | 3470 N |
| Static load | = | 3800 N |
| Fatigue load limit Pu | = | 415 N |
| Radial dynamic load | = | 3800 N |
| Radial static load | = | 5500 N |
| Speed rating | = | 11000 rpm |
| Weight | = | 32 g |
