SKU: KCRM-08

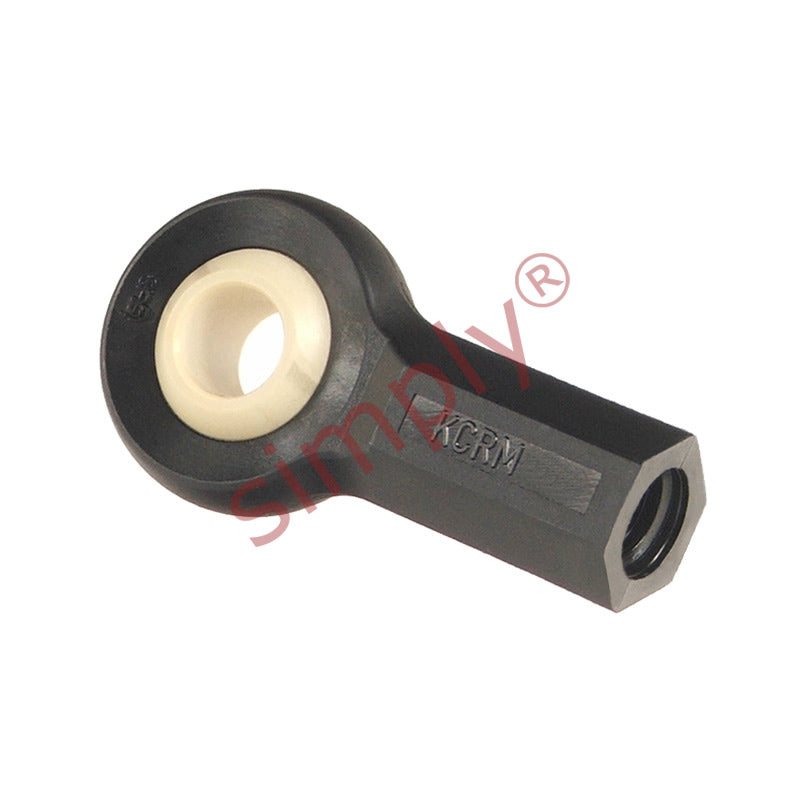

igubal KCRM08 Right Hand Female Plastic Rod End 8mm Bore M8 Thread
- Regular price
- $21.52 ex VAT
- Sale price
- $21.52
- Regular price
-
In stock
Quantity Price Breaks
10+
$19.15
19+
$18.08
29+
$17.86
39+
$17.65
49+
$17.43
74+
$17.22
99+
$16.14
199+
$15.92
249+
$15.71
499+
$15.49
999+
$15.06
SKU:
KCRM-08
igubal KCRM08 Right Hand Female Plastic Rod End 8mm Bore M8 Thread
- Regular price
- $21.52 ex VAT
- Sale price
- $21.52
- Regular price
-
Description
IGUS igubal® KCRM series right hand female thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint, they are very smooth and have no dirt traps and have high dampening qualities. They have a very high resistance to corrosion and chemicals.
Materials: Ball material iglidur® W300, Housing igumid G
Operating Temperature Range: Long term application temperature of 90 Deg C (up to 110 Deg C short term)
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Smooth design has no dirt traps, Compensation of misalignment, Light weight, Excellent corrosion resistance, Hexagonal shaped body to accommodate a spanner to assist in fitting
Materials: Ball material iglidur® W300, Housing igumid G
Operating Temperature Range: Long term application temperature of 90 Deg C (up to 110 Deg C short term)
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Smooth design has no dirt traps, Compensation of misalignment, Light weight, Excellent corrosion resistance, Hexagonal shaped body to accommodate a spanner to assist in fitting
