SKU: K12x16x13TN-MB

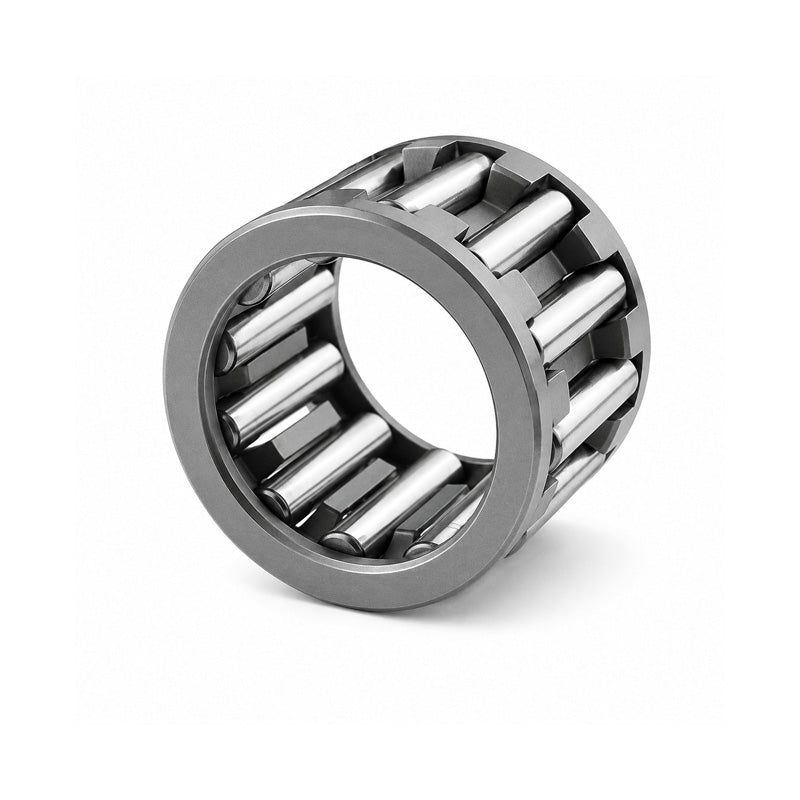

Major Brand K12x16x13TN Needle Roller Cage Assembly 12x16x13mm
- Regular price
- $9.26 ex VAT
- Sale price
- $9.26
- Regular price
-
Not in stock
Quantity Price Breaks
10
$8.24
19
$7.78
29
$7.69
39
$7.59
49
$7.50
74
$7.41
99
$6.95
199
$6.85
249
$6.76
499
$6.67
999
$6.48
SKU:
K12x16x13TN-MB
Major Brand K12x16x13TN Needle Roller Cage Assembly 12x16x13mm
- Regular price
- $9.26 ex VAT
- Sale price
- $9.26
- Regular price
-
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Technical
| Fw | = | 12mm |
| Ew | = | 16mm |
| U | = | 13mm |
| Dynamic load | = | 7650 N |
| Static load | = | 9500 N |
| Fatigue load limit Pu | = | 1100 N |
| Speed in grease | = | 17000 rpm |
| Speed in oil | = | 26000 rpm |
| Seal | = | G12x16x3 |
| Weight | = | 3.6 g |
