SKU: JSC059SS316-JUB

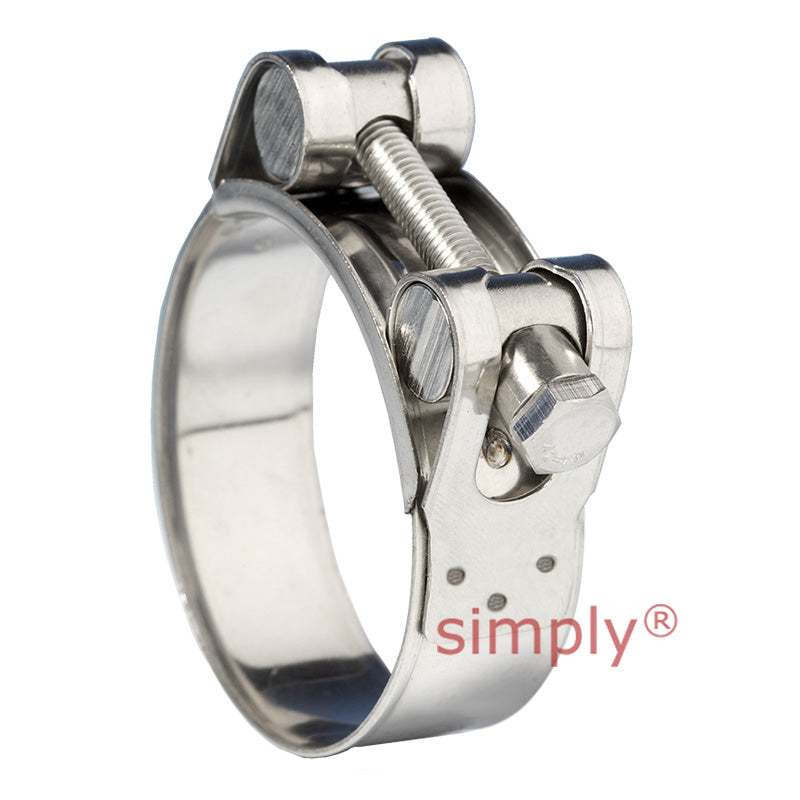

JSC059SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 56mm - 59mm Band Width 20mm
- Regular price
- $21.29 ex VAT
- Sale price
- $21.29
- Regular price
-
In stock
Quantity Price Breaks
3
$18.95
5
$17.88
9
$17.67
19
$17.46
49
$17.24
74
$17.03
99
$15.97
199
$15.75
249
$15.54
499
$15.33
999
$14.90
SKU:
JSC059SS316-JUB
JSC059SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 56mm - 59mm Band Width 20mm
- Regular price
- $21.29 ex VAT
- Sale price
- $21.29
- Regular price
-
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 56mm - 59mm |
| Band Width (+/- 0.1) | = | 20mm |
| Band Thickness (+/- 0.1) | = | 1mm |
| Recommended Torque | = | 6Nm |
| Maximum Torque | = | 8Nm |
| Screw Head | = | 10mm |
