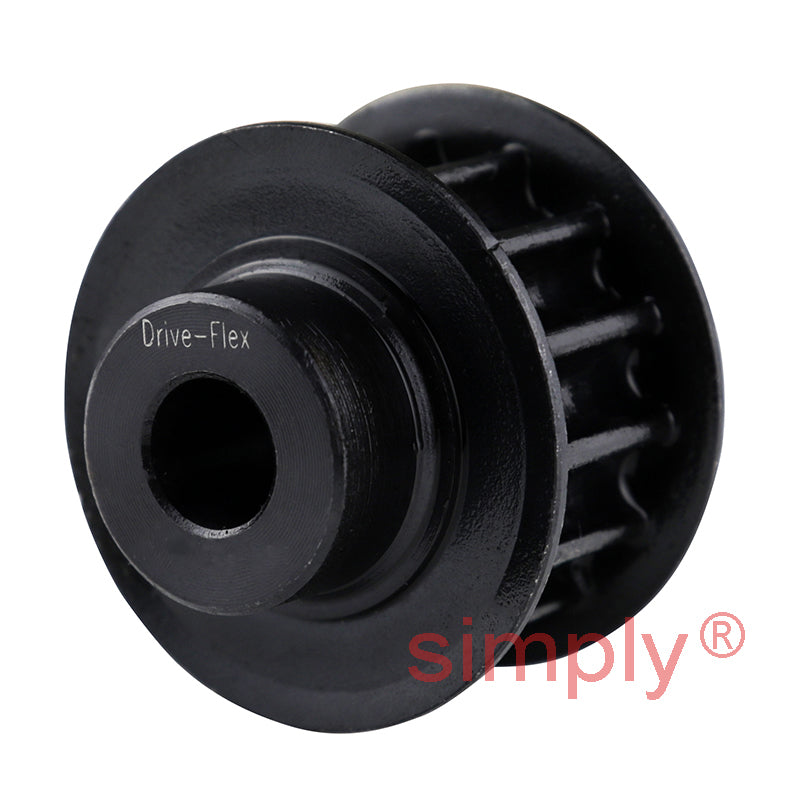

P36-14M-170F - 14mm Pitch 36 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 170mm Wide Belts

SKU: HP36-14M-170F

P36-14M-170F - 14mm Pitch 36 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 170mm Wide Belts

$304.87 ex VAT
$304.87
ex VAT
Equivalent to: 3614M170F
Not in stock

Quantity Price Breaks

3 $271.33
5 $256.09
9 $253.04
19 $249.99
49 $246.94
74 $243.90
99 $228.65
199 $225.60
249 $222.56
499 $219.51
999 $213.41
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
P36-14M-170F - 14mm Pitch 36 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 170mm Wide Belts
SKU: HP36-14M-170F

P36-14M-170F - 14mm Pitch 36 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 170mm Wide Belts

$304.87 ex VAT
$304.87
ex VAT

Description

HTD Pilot Bore Timing Pulley: High Torque Drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

Technical

--- = Pulley Dimensions
Pitch = 14mm
Number of Teeth = 36
Type = 1F Pilot Bore
Dp = 160.43mm
De = 157.68mm
Df = 168mm
Dm = 120mm
F = 187mm
L = 202mm
Pilot Bore - nominal = 32mm
Weight = 26.07kg
