SKU: HMV-52-EBF-HN-SNR

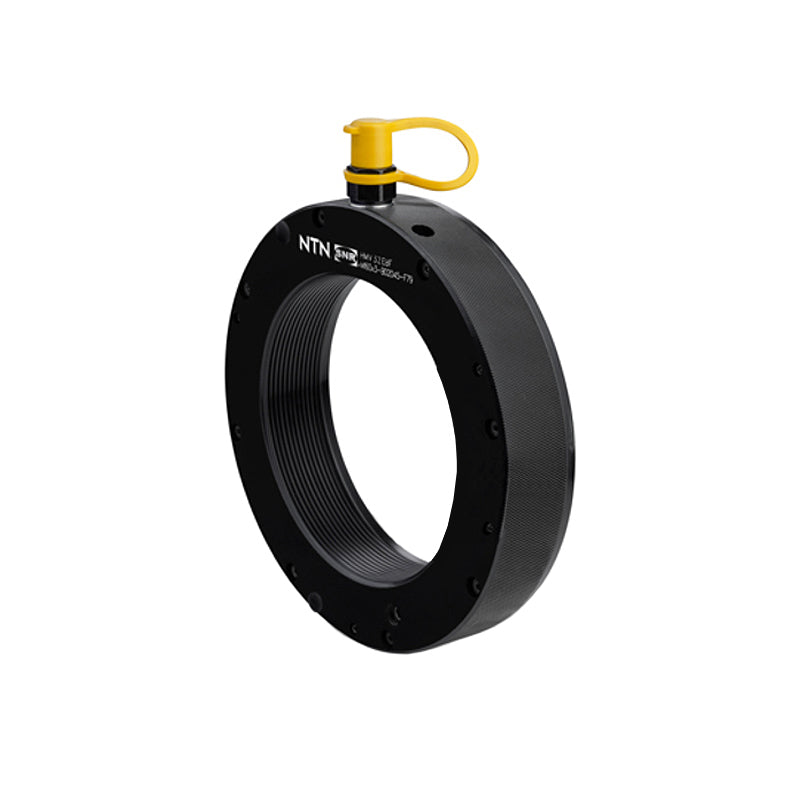

SNR HMV52 Metric Hydraulic Nut with Tr260x4 Thread - Allow 2-3 Days
- Regular price
- $4,798.83 ex VAT
- Sale price
- $4,798.83
- Regular price
-
Not in stock
Quantity Price Breaks
3
$4,270.96
5
$4,031.02
9
$3,983.03
19
$3,935.04
49
$3,887.05
74
$3,839.06
99
$3,599.12
199
$3,551.13
249
$3,503.15
499
$3,455.16
999
$3,359.18
SKU:
HMV-52-EBF-HN-SNR
SNR HMV52 Metric Hydraulic Nut with Tr260x4 Thread - Allow 2-3 Days
- Regular price
- $4,798.83 ex VAT
- Sale price
- $4,798.83
- Regular price
-
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.

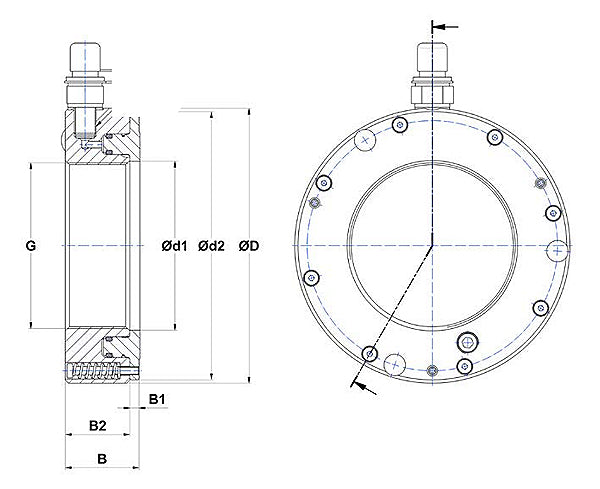

Technical
| HMV | = | HMV52 |
| Thread G | = | Tr260x4 |
| Outside Diameter D | = | 356mm |
| Total Width B | = | 56mm |
| Piston Diameter max. d2 | = | 352mm |
| Permitted Piston Stroke | = | 11mm |
| Flange Width B1 | = | 9mm |
| Body Width B2 | = | 47mm |
| Diameter d1 | = | 262mm |
| Piston Surface Area | = | 19150mm2 |
| Weight | = | 19.2kg |
