SKU: HK1516.2RS-MB

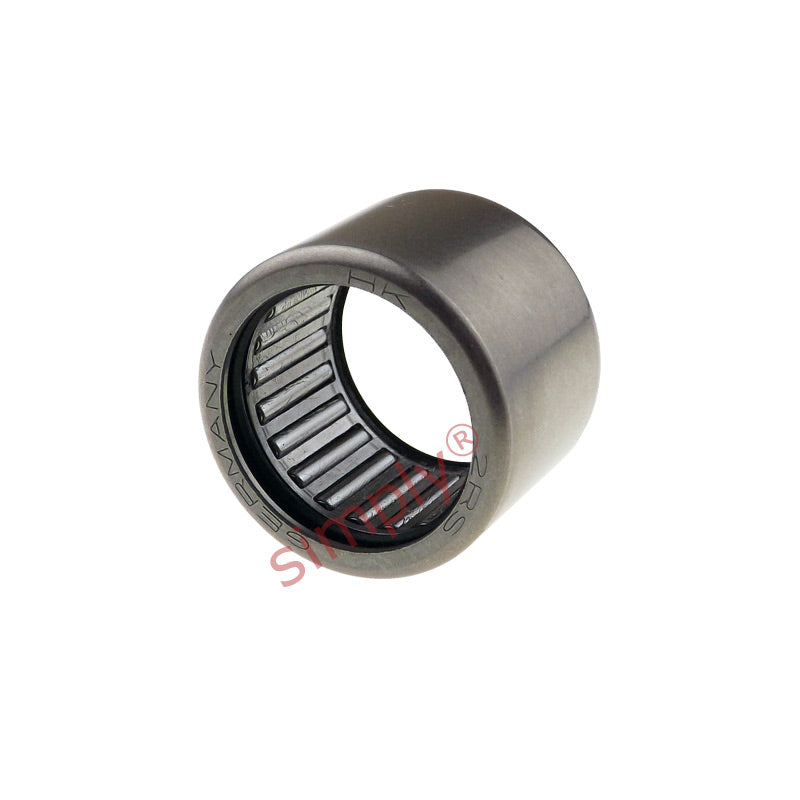

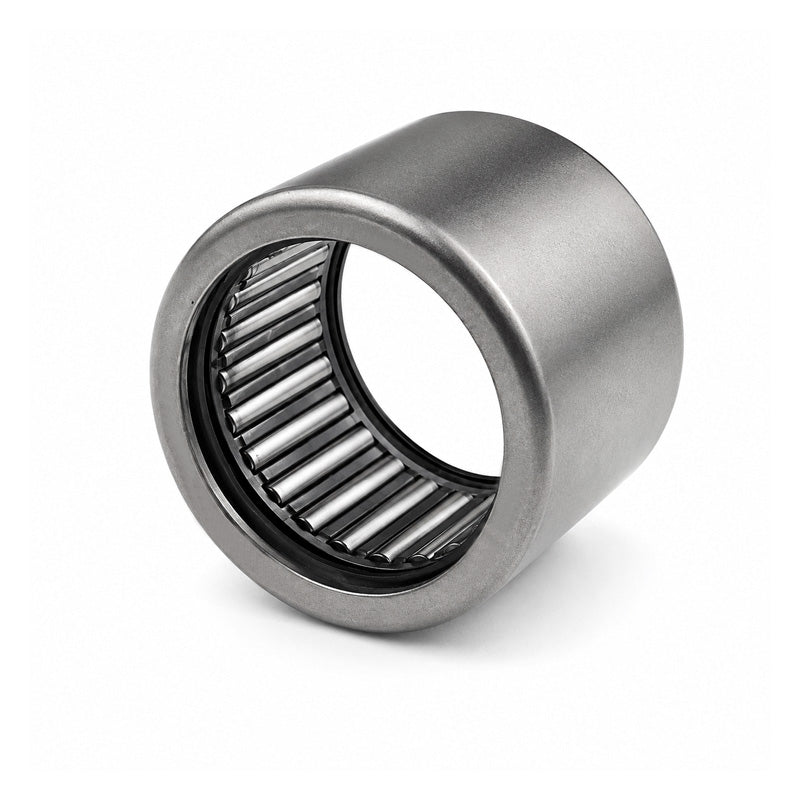

Major Brand HK15162RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 15x21x16mm
- Regular price
- $14.20 ex VAT
- Sale price
- $14.20
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
$12.64
19
$11.93
29
$11.79
39
$11.64
49
$11.50
74
$11.36
99
$10.65
199
$10.51
249
$10.37
499
$10.22
999
$9.94
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 15mm |
| D | = | 21mm |
| C | = | 16mm |
| Dynamic load | = | 7480 N |
| Static load | = | 10000 N |
| Fatigue load limit Pu | = | 1140 N |
| Speed in grease | = | 11000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 16mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR12x15x16.5 |
| Weight | = | 15 g |
