SKU: HGJ80-JCS

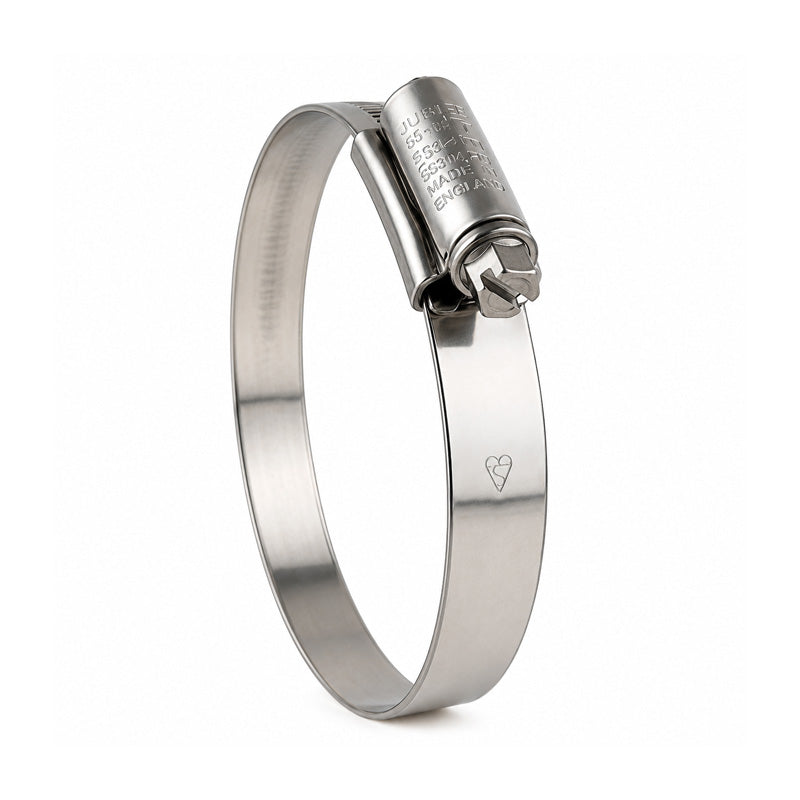

JCS HGJ80 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 60-80mm Band Width 13mm
- Regular price
- $19.88 ex VAT
- Sale price
- $19.88
- Regular price
-
In stock
Quantity Price Breaks
3
$17.69
5
$16.70
9
$16.50
19
$16.30
49
$16.10
74
$15.90
99
$14.91
199
$14.71
249
$14.51
499
$14.31
999
$13.92
SKU:
HGJ80-JCS
JCS HGJ80 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 60-80mm Band Width 13mm
- Regular price
- $19.88 ex VAT
- Sale price
- $19.88
- Regular price
-
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
Technical
| BS No. | = | 80 |
| Adjustment Range (mm) | = | 60-80mm |
| Adjustment Range (inch) | = | 2-3/8 - 3-1/8 inch |
| A | = | 13mm |
| B | = | 20mm |
| C | = | 12mm |
| D | = | 16mm |
| E | = | 13mm |
| F | = | 0.9mm |
| Screw | = | 7mm A/F |
| Recommended Torque Nm | = | 6Nm |
| Recommended Torque lb-in | = | 54lb-in |
