SKU: HGJ140-JCS

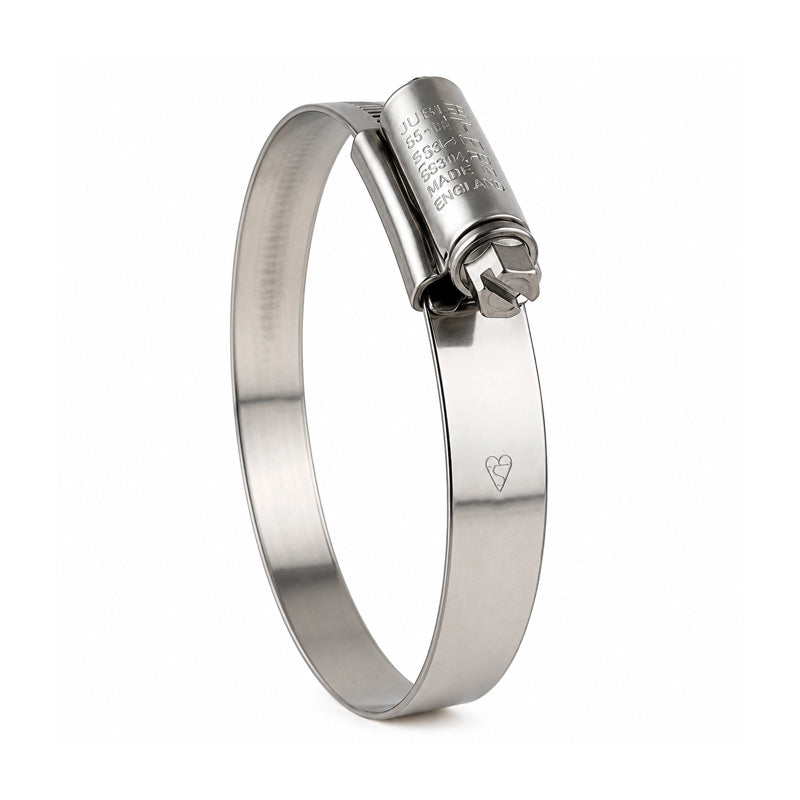

JCS HGJ140 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 110-140mm Band Width 13mm
- Regular price
- $22.44 ex VAT
- Sale price
- $22.44
- Regular price
-
In stock
Quantity Price Breaks
3
$19.97
5
$18.85
9
$18.63
19
$18.40
49
$18.18
74
$17.95
99
$16.83
199
$16.61
249
$16.38
499
$16.16
999
$15.71
SKU:
HGJ140-JCS
JCS HGJ140 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 110-140mm Band Width 13mm
- Regular price
- $22.44 ex VAT
- Sale price
- $22.44
- Regular price
-
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
Technical
| BS No. | = | 140 |
| Adjustment Range (mm) | = | 110-140mm |
| Adjustment Range (inch) | = | 4-3/8 - 5-1/2 inch |
| A | = | 13mm |
| B | = | 20mm |
| C | = | 12mm |
| D | = | 16mm |
| E | = | 13mm |
| F | = | 0.9mm |
| Screw | = | 7mm A/F |
| Recommended Torque Nm | = | 6Nm |
| Recommended Torque lb-in | = | 54lb-in |
