SKU: HF.0612.MB

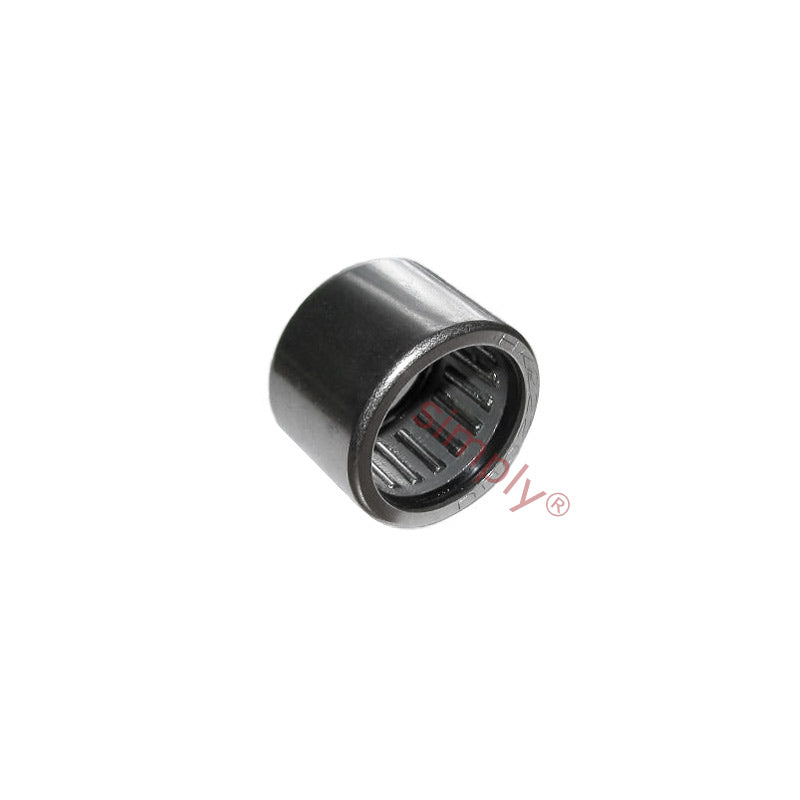

Branded HF0612 Needle Roller Clutch Type One Way Bearing 6x10x12mm
- Regular price
- $18.85 ex VAT
- Sale price
- $18.85
- Regular price
-
Quantity Price Breaks
Branded HF0612 Needle Roller Clutch Type One Way Bearing 6x10x12mm
- Regular price
- $18.85 ex VAT
- Sale price
- $18.85
- Regular price
-
Description
Clutch Needle Roller Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease.
They can be used together with needle roller bearings of the HK and BK series and are dimensionally the same and are available for shaft diameters from 6mm to 35mm
Benefits: High indexing accuracy, transmit torques in one direction, work at –10 deg C to +70 deg C
Please note: This bearing has a special none standard bore size
Technical
| Fw | = | 6mm |
| D | = | 10mm |
| C | = | 12mm |
| Tolerance | = | 0.3mm |
| r min | = | 0.3 |
| Torque | = | 1.76 N m |
| Speed (rotating shaft) | = | 23000 rpm |
| Speed (rotating outer ring) | = | 13000 rpm |
| Weight | = | 3 g |
