SKU: HCFL213

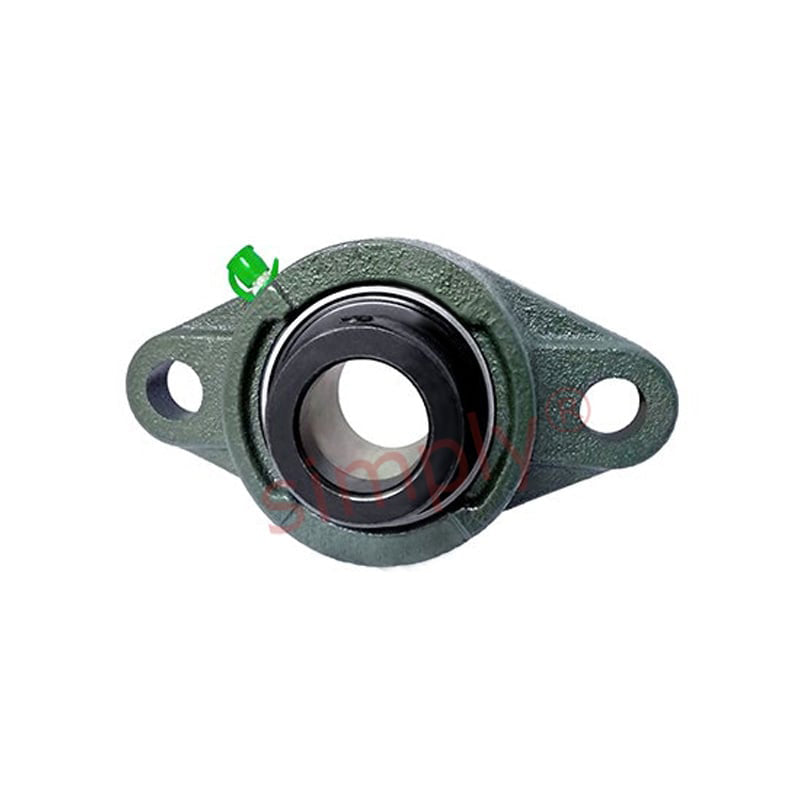

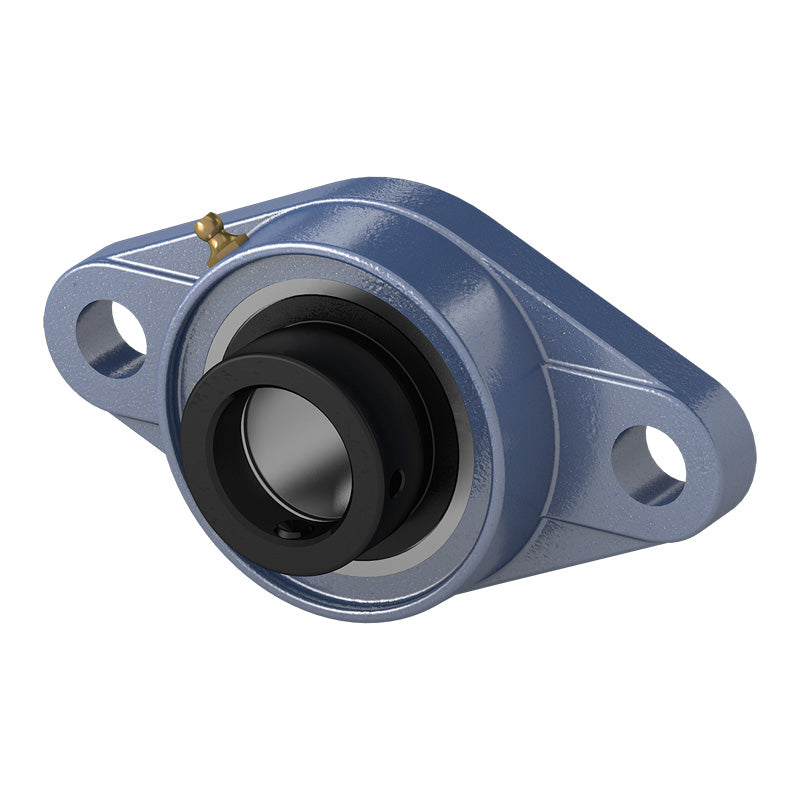

HCFL213 Metric Two Bolt Cast Iron Oval Housing with 65mm Eccentric Collar Insert
- Regular price
- $128.30 ex VAT
- Sale price
- $128.30
- Regular price
-
Not in stock
Quantity Price Breaks
3
$114.19
4
$107.77
9
$106.49
19
$105.21
49
$103.92
99
$102.64
499
$96.23
999
$94.94
1999
$93.66
2999
$92.38
4999
$89.81
SKU:
HCFL213
HCFL213 Metric Two Bolt Cast Iron Oval Housing with 65mm Eccentric Collar Insert
- Regular price
- $128.30 ex VAT
- Sale price
- $128.30
- Regular price
-
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
Technical
| d | = | 65mm |
| a | = | 258mm |
| e | = | 210mm |
| i | = | 30mm |
| g | = | 22mm |
| l | = | 50mm |
| s | = | 23mm |
| b | = | 155mm |
| z | = | 81.6mm |
| B1 | = | 85.7mm |
| n | = | 34.1mm |
| Bolt size | = | M20 |
| Bearing no | = | HC213 |
| Housing no | = | FL213 |
| Weight | = | 5.1 kg |
