SKU: HCFC214

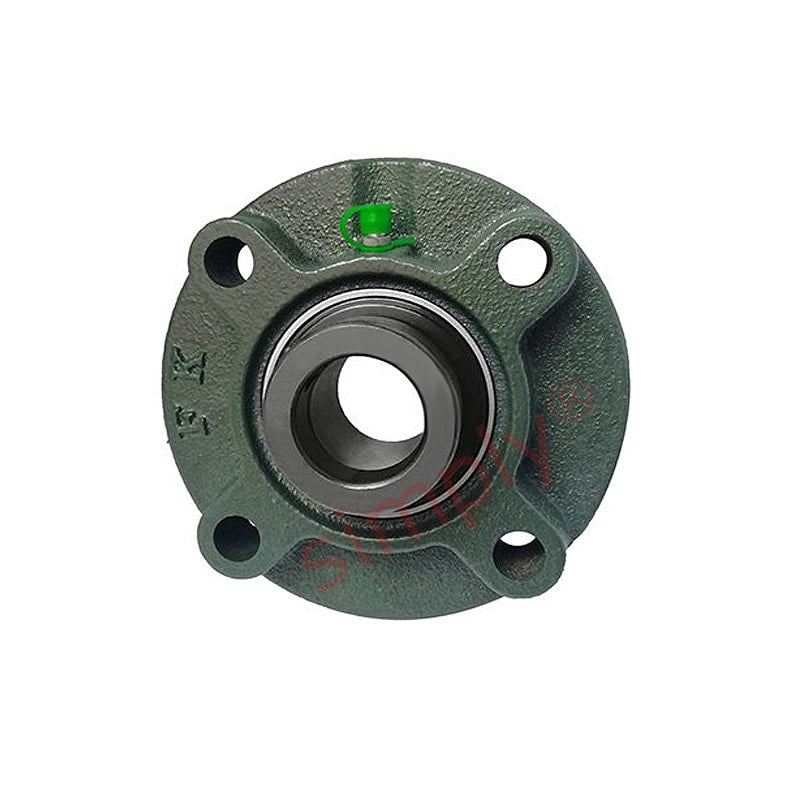

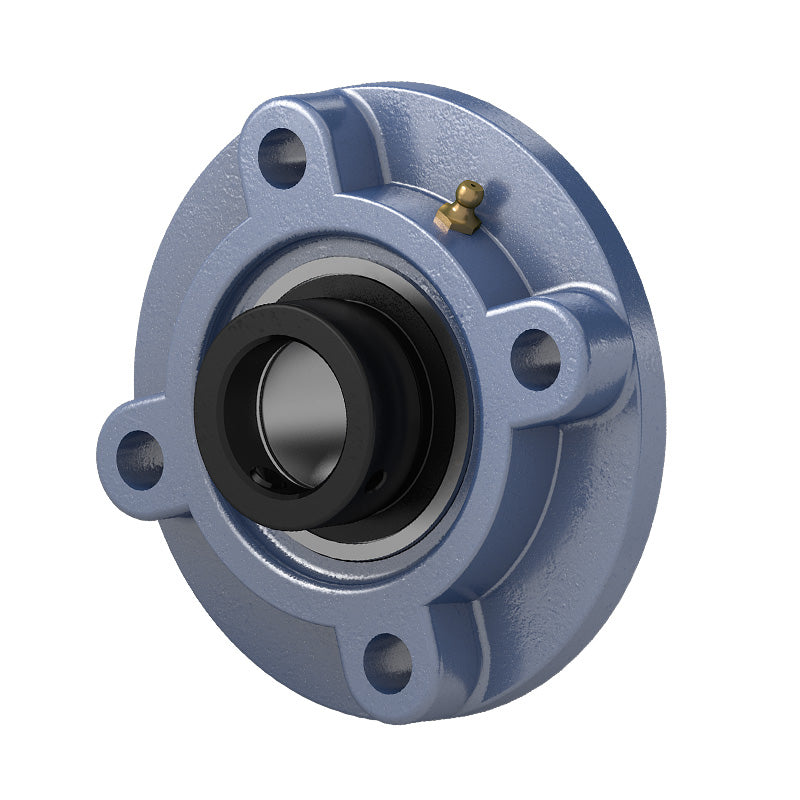

HCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert
- Regular price
- $153.11 ex VAT
- Sale price
- $153.11
- Regular price
-
Not in stock
Quantity Price Breaks
3
$136.27
4
$128.61
9
$127.08
19
$125.55
49
$124.02
99
$122.49
499
$114.83
999
$113.30
1999
$111.77
2999
$110.24
4999
$107.18
SKU:
HCFC214
HCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert
- Regular price
- $153.11 ex VAT
- Sale price
- $153.11
- Regular price
-
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
Technical
| d | = | 70mm |
| a | = | 215mm |
| p | = | 177mm |
| (e) | = | 125.1mm |
| i | = | 17mm |
| s | = | 19mm |
| j | = | 14mm |
| k | = | 18mm |
| g | = | 40mm |
| f | = | 150mm |
| z | = | 68.6mm |
| B1 | = | 85.7mm |
| n | = | 34.1mm |
| Bolt size | = | M16 |
| Bearing no | = | HC214 |
| Housing no | = | FC214 |
| Weight | = | 6.87 kg |
