SKU: HA3126L-EU
HA3126L Budget Imperial Adaptor Sleeve for 4-7/16 inch Shaft
- Regular price
- $467.99 ex VAT
- Sale price
- $467.99
- Regular price
-
Not in stock
Quantity Price Breaks
10
$416.51
19
$393.11
29
$388.43
39
$383.75
49
$379.07
74
$374.39
99
$350.99
199
$346.31
249
$341.63
499
$336.95
999
$327.59
SKU:
HA3126L-EU
HA3126L Budget Imperial Adaptor Sleeve for 4-7/16 inch Shaft
- Regular price
- $467.99 ex VAT
- Sale price
- $467.99
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical

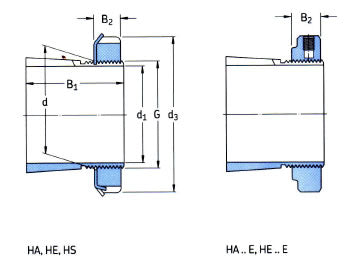

| --- | = | Dimensions |
| d1 | = | 112.713mm (4-7/16) inch |
| d | = | 130mm |
| d3 | = | 155mm |
| B1 | = | 92mm |
| B2 | = | 23mm |
| G | = | Thread 130x2mm |
| Weight | = | 3.55 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HA3126L |
| Nut | = | KML26 |
| Washer | = | MBL26 |
| Hydraulic nut | = | HMV26E |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2226K+taper> | = | C2226K< |
| /a> | = |
