SKU: H308C-EU

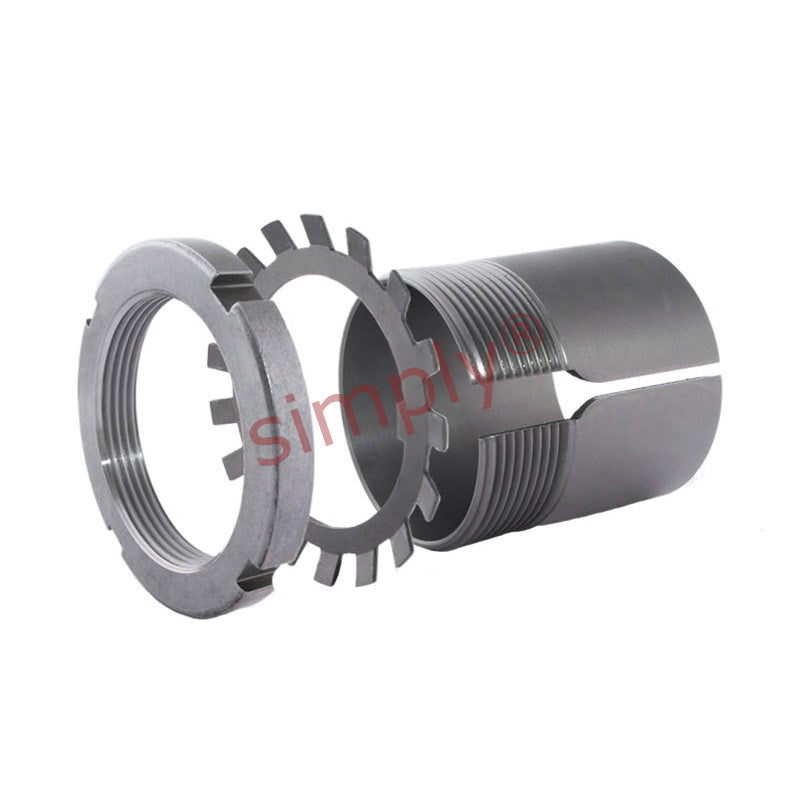

H308C Budget Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
- Regular price
- $43.36 ex VAT
- Sale price
- $43.36
- Regular price
-
Not in stock
Quantity Price Breaks
10
$38.59
19
$36.42
29
$35.99
39
$35.56
49
$35.12
74
$34.69
99
$32.52
199
$32.09
249
$31.65
499
$31.22
999
$30.35
SKU:
H308C-EU
H308C Budget Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
- Regular price
- $43.36 ex VAT
- Sale price
- $43.36
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 35mm |
| d | = | 40mm |
| d3 | = | 58mm |
| B1 | = | 36mm |
| B2 | = | 11mm |
| G | = | Thread 40x1.5mm |
| Weight | = | 0.17 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H308C |
| Nut | = | KM8 |
| Washer | = | MB8C |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2208K-2RS+taper> | = | 2208K-2RS< |
| /a> | = |
