SKU: H211-EU

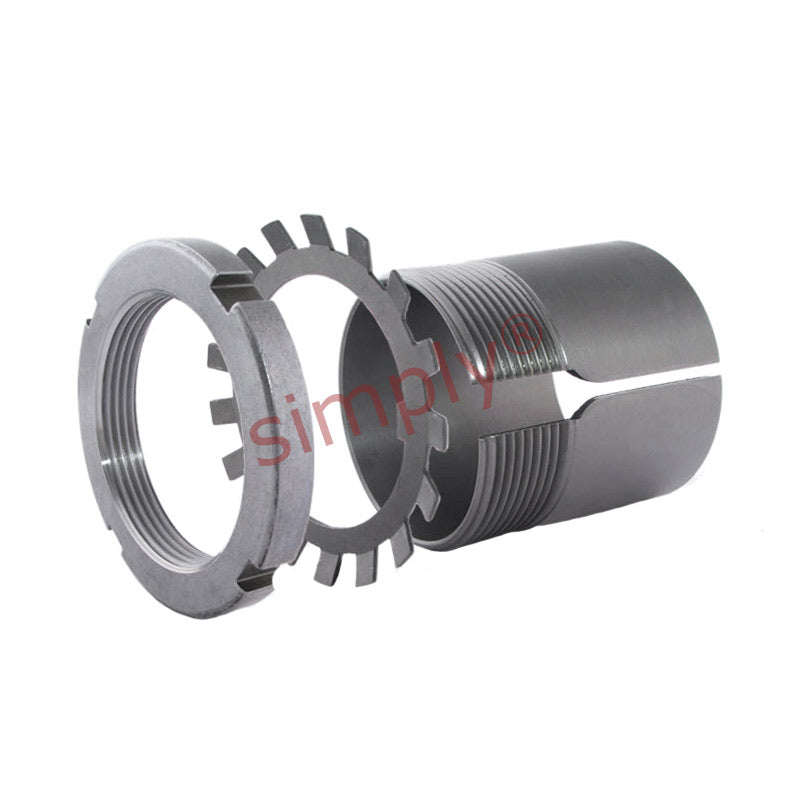

H211 Budget Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
- Regular price
- $31.12 ex VAT
- Sale price
- $31.12
- Regular price
-
In stock
Quantity Price Breaks
10
$27.70
19
$26.14
29
$25.83
39
$25.52
49
$25.21
74
$24.90
99
$23.34
199
$23.03
249
$22.72
499
$22.41
999
$21.78
SKU:
H211-EU
H211 Budget Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
- Regular price
- $31.12 ex VAT
- Sale price
- $31.12
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical

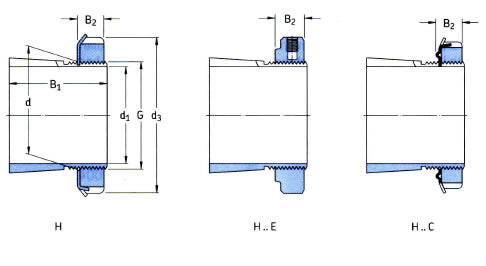

| --- | = | Dimensions |
| d1 | = | 50mm |
| d | = | 55mm |
| d3 | = | 75mm |
| B1 | = | 37mm |
| B2 | = | 12.5mm |
| G | = | Thread 55x2mm |
| Weight | = | 0.28 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H211 |
| Nut | = | KM11 |
| Washer | = | MB11 |
| Hydraulic nut | = | HMV11E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1211K+taper+self+open> | = | 1211K< |
| /a> | = |
