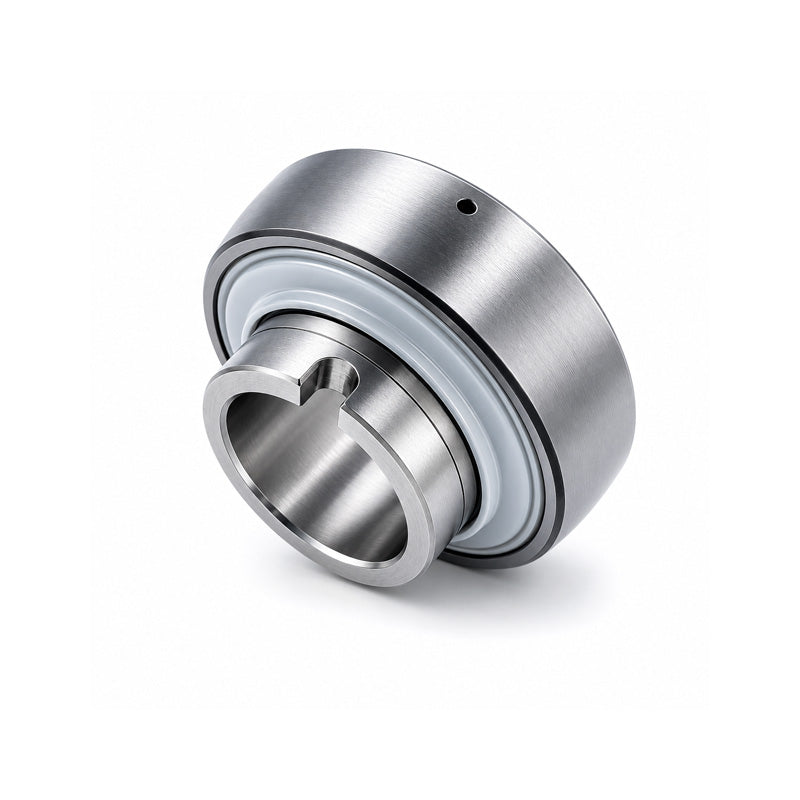

INA GLE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 70x125x68.2mm

SKU: GLE70-KRR-B-INA

INA GLE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 70x125x68.2mm

$338.46 ex VAT
$338.46
ex VAT
Not in stock

Quantity Price Breaks

3 $301.23
5 $284.31
10 $280.92
15 $277.54
20 $274.15
30 $270.77
40 $253.85
50 $250.46
60 $247.08
75 $243.69
100 $236.92
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA GLE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 70x125x68.2mm
SKU: GLE70-KRR-B-INA

INA GLE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 70x125x68.2mm

$338.46 ex VAT
$338.46
ex VAT

Description

INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C.
Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range.
