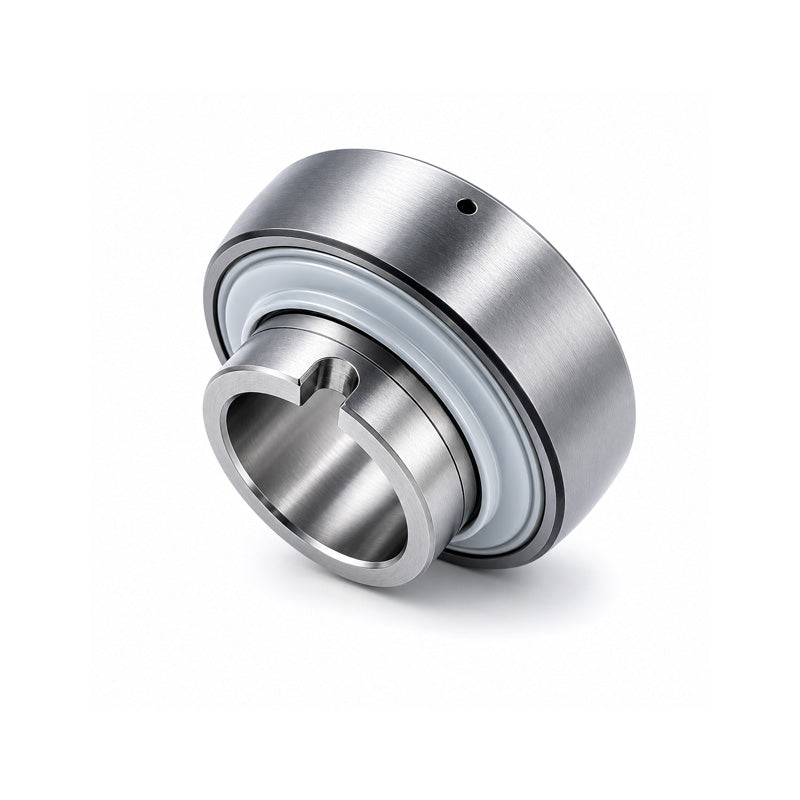

INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm

SKU: GLE45-KRR-B-INA

INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm

$124.01 ex VAT
$124.01
ex VAT
Not in stock

Quantity Price Breaks

3 $110.37
5 $104.17
10 $102.93
15 $101.69
20 $100.45
30 $99.21
40 $93.01
50 $91.77
60 $90.53
75 $89.29
100 $86.81
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm
SKU: GLE45-KRR-B-INA

INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm

$124.01 ex VAT
$124.01
ex VAT

Description

INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C.
Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range.
