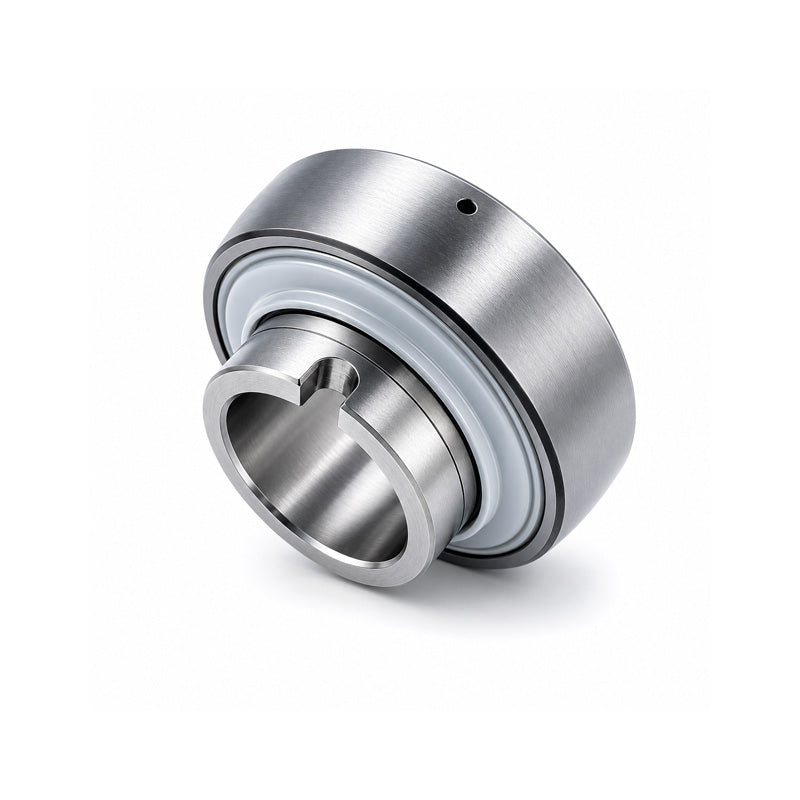

INA GLE40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 40x80x42.9mm

SKU: GLE40-KRR-B-INA

INA GLE40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 40x80x42.9mm

$104.35 ex VAT
$104.35
ex VAT
Not in stock

Quantity Price Breaks

3 $92.87
5 $87.65
10 $86.61
15 $85.57
20 $84.52
30 $83.48
40 $78.26
50 $77.22
60 $76.18
75 $75.13
100 $73.05
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA GLE40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 40x80x42.9mm
SKU: GLE40-KRR-B-INA

INA GLE40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 40x80x42.9mm

$104.35 ex VAT
$104.35
ex VAT

Description

INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C.
Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range.
