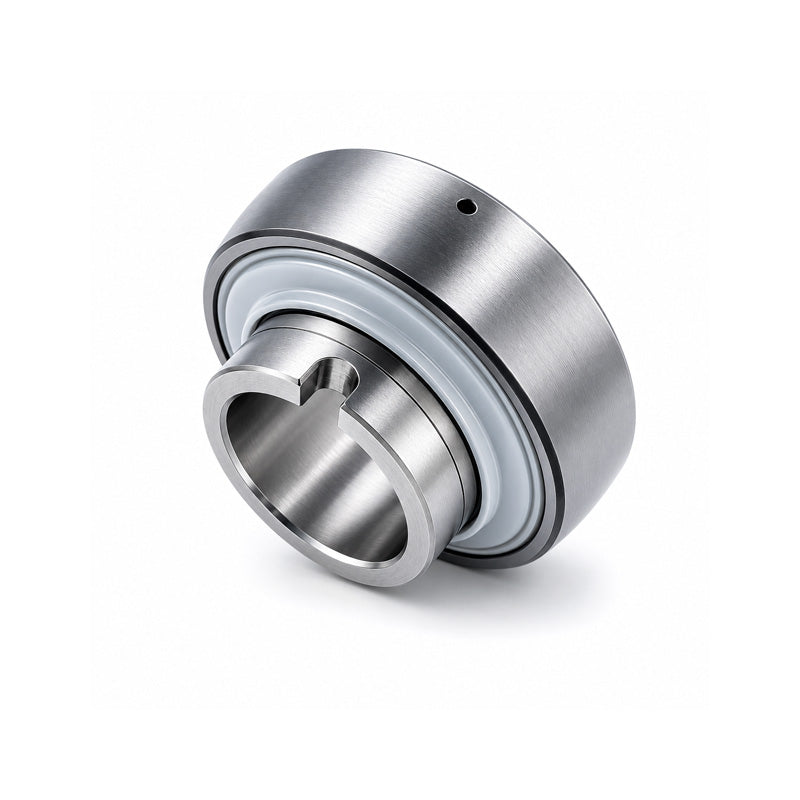

INA GLE25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 25x52x34.9mm

SKU: GLE25-KRR-B-INA

INA GLE25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 25x52x34.9mm

$65.10 ex VAT
$65.10
ex VAT
Not in stock

Quantity Price Breaks

3 $57.94
5 $54.68
10 $54.03
15 $53.38
20 $52.73
30 $52.08
40 $48.83
50 $48.17
60 $47.52
75 $46.87
100 $45.57
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA GLE25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 25x52x34.9mm
SKU: GLE25-KRR-B-INA

INA GLE25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 25x52x34.9mm

$65.10 ex VAT
$65.10
ex VAT

Description

INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C.
Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range.
