SKU: GLE20-KRR-B-INA

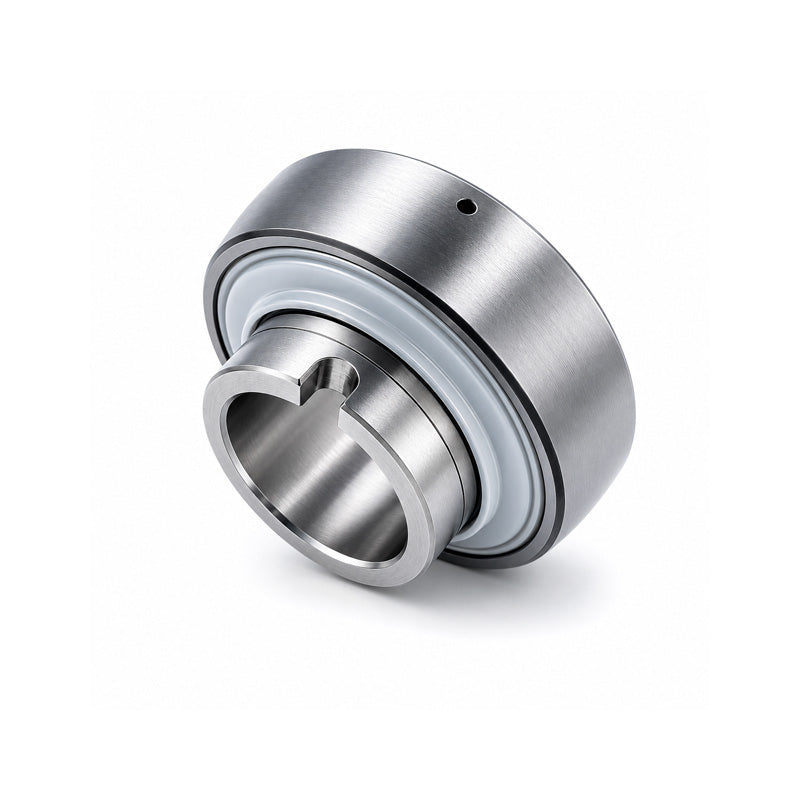

INA GLE20XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 20x47x34.1mm
- Regular price
- $64.45 ex VAT
- Sale price
- $64.45
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
$57.36
5
$54.14
10
$53.49
15
$52.85
20
$52.20
30
$51.56
40
$48.34
50
$47.69
60
$47.05
75
$46.40
100
$45.12
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
