SKU: GE15ES2RS.EU

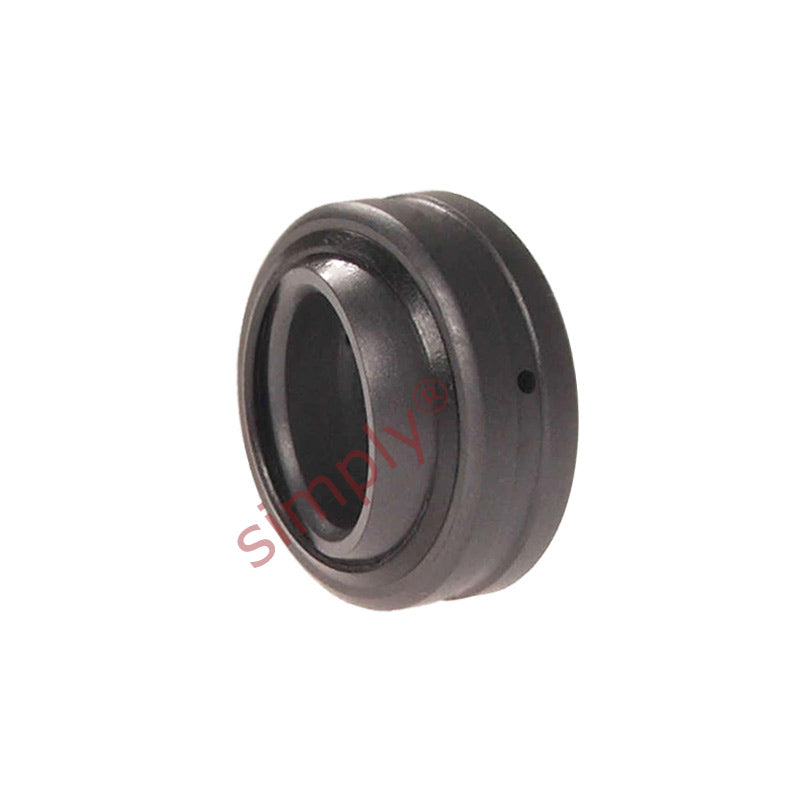

GE15ES2RS Rubber Sealed Spherical Plain Bearing 15x26x12x9mm
- Regular price
- $14.64 ex VAT
- Sale price
- $14.64
- Regular price
-
In stock
Quantity Price Breaks
10+
$13.03
19+
$12.30
29+
$12.15
39+
$12.00
49+
$11.86
74+
$11.71
99+
$10.98
199+
$10.83
249+
$10.69
499+
$10.54
999+
$10.25
SKU:
GE15ES2RS.EU
GE15ES2RS Rubber Sealed Spherical Plain Bearing 15x26x12x9mm
- Regular price
- $14.64 ex VAT
- Sale price
- $14.64
- Regular price
-
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
Technical
| d | = | 15mm |
| D | = | 26mm |
| B | = | 12mm |
| C | = | 9mm |
| dk | = | 22mm |
| rs min | = | 0.3mm |
| r1s min | = | 0.3mm |
| Angle & | = | alpha |
| = | 8& | |
| deg | = | |
| Dynamic load Co | = | 16 kN |
| Static load Cor | = | 84 kN |
| Weight | = | 0.027 kg |
