SKU: GE110ES.EU

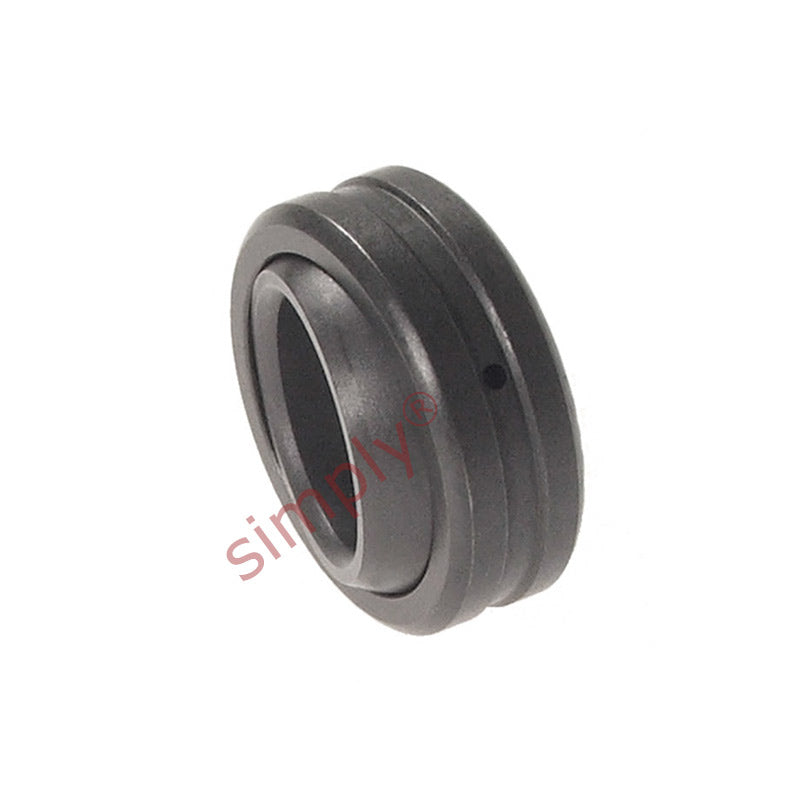

GE110ES Spherical Plain Bearing 110x160x70x55mm
- Regular price
- $266.22 ex VAT
- Sale price
- $266.22
- Regular price
-
Not in stock
Quantity Price Breaks
10
$236.94
19
$223.62
29
$220.96
39
$218.30
49
$215.64
74
$212.98
99
$199.67
199
$197.00
249
$194.34
499
$191.68
999
$186.35
SKU:
GE110ES.EU
GE110ES Spherical Plain Bearing 110x160x70x55mm
- Regular price
- $266.22 ex VAT
- Sale price
- $266.22
- Regular price
-
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |

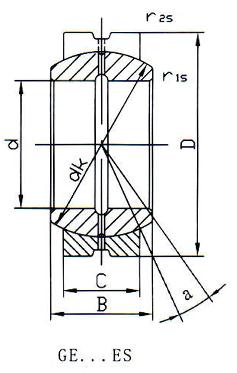

Technical
| d | = | 110mm |
| D | = | 160mm |
| B | = | 70mm |
| C | = | 55mm |
| dk | = | 140mm |
| rs min | = | 1mm |
| r1s min | = | 1mm |
| Angle & | = | alpha |
| = | 6& | |
| deg | = | |
| Dynamic load Co | = | 654 kN |
| Static load Cor | = | 3270 kN |
| Weight | = | 4.82 kg |
