INA GAY15XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Grub Screws 15x40x22mm

SKU: GAY15-NPP-B-INA

INA GAY15XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Grub Screws 15x40x22mm

$33.71 ex VAT
$33.71
ex VAT
In stock

Quantity Price Breaks

3 $30.00
5 $28.32
10 $27.98
15 $27.64
20 $27.31
30 $26.97
40 $25.28
50 $24.95
60 $24.61
75 $24.27
100 $23.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA GAY15XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Grub Screws 15x40x22mm
SKU: GAY15-NPP-B-INA

INA GAY15XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Grub Screws 15x40x22mm

$33.71 ex VAT
$33.71
ex VAT

Description

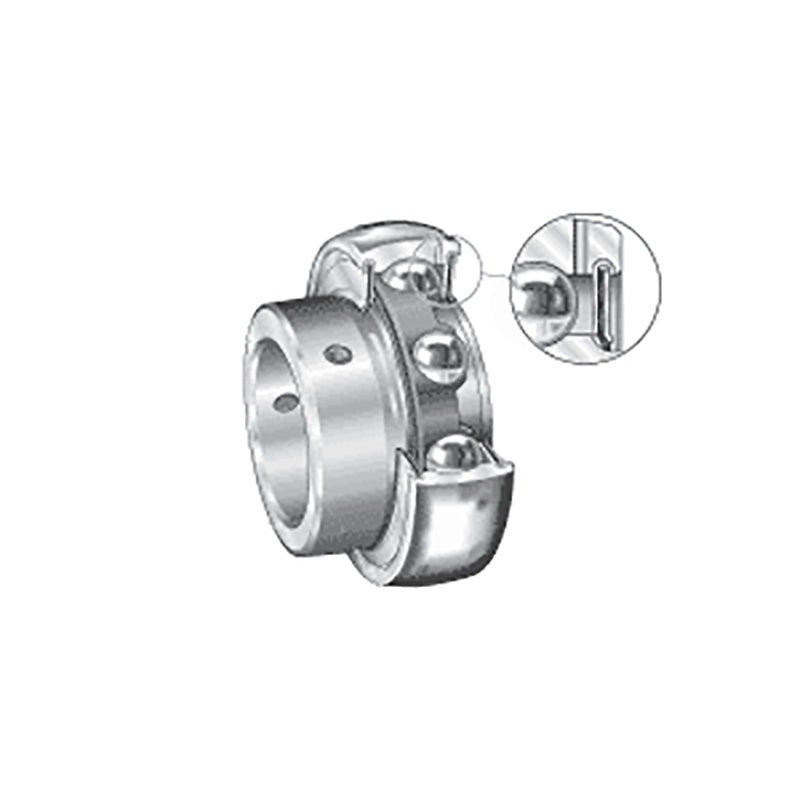

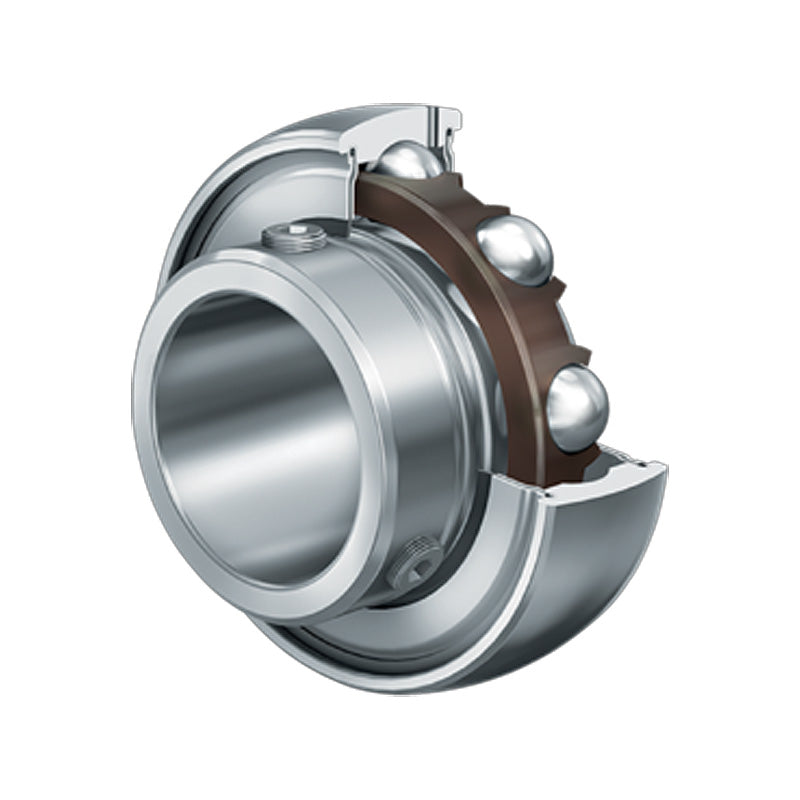

INA GAY..NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, compensation of misalignment.
