SKU: FPL-M16-14-MB
Branded FPL-M16-14 Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Female Rod End M16x2 Thread - Allow 7-10 Days
- Regular price
- $62.22 ex VAT
- Sale price
- $62.22
- Regular price
-
Not in stock
Quantity Price Breaks
10
$55.38
19
$52.26
29
$51.64
39
$51.02
49
$50.40
74
$49.78
99
$46.67
199
$46.04
249
$45.42
499
$44.80
999
$43.55
SKU:
FPL-M16-14-MB
Branded FPL-M16-14 Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Female Rod End M16x2 Thread - Allow 7-10 Days
- Regular price
- $62.22 ex VAT
- Sale price
- $62.22
- Regular price
-
Description
|
FP Series Maintenance Free Female Rod Ends: The FP series are a standard range of self-lubricating general purpose female rod ends, suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range -30c to +170c Benefits: Low friction, Self-lubricating, good wear resistance, excellent moisture resistance, no maintenance |

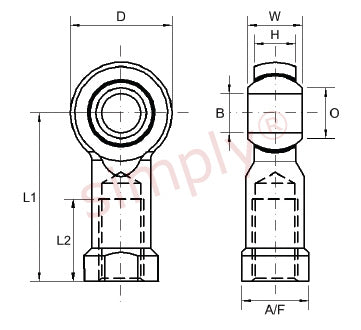

Technical
| Bore size | = | 14mm |
| Thread | = | M16x2 |
| W | = | 21mm |
| H | = | 15mm |
| D | = | 38mm |
| L1 | = | 64mm |
| L2 | = | 33mm |
| O | = | 19.3mm |
| AF | = | 22mm |
| Static load | = | 37130 N |
