SKU: FL40-PBC
PBC FL 40 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
- Regular price
- $588.83 ex VAT
- Sale price
- $588.83
- Regular price
-
Not in stock
Quantity Price Breaks
3
$524.06
5
$494.62
9
$488.73
19
$482.84
49
$476.95
74
$471.06
99
$441.62
199
$435.73
249
$429.85
499
$423.96
999
$412.18
SKU:
FL40-PBC
PBC FL 40 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
- Regular price
- $588.83 ex VAT
- Sale price
- $588.83
- Regular price
-
Description

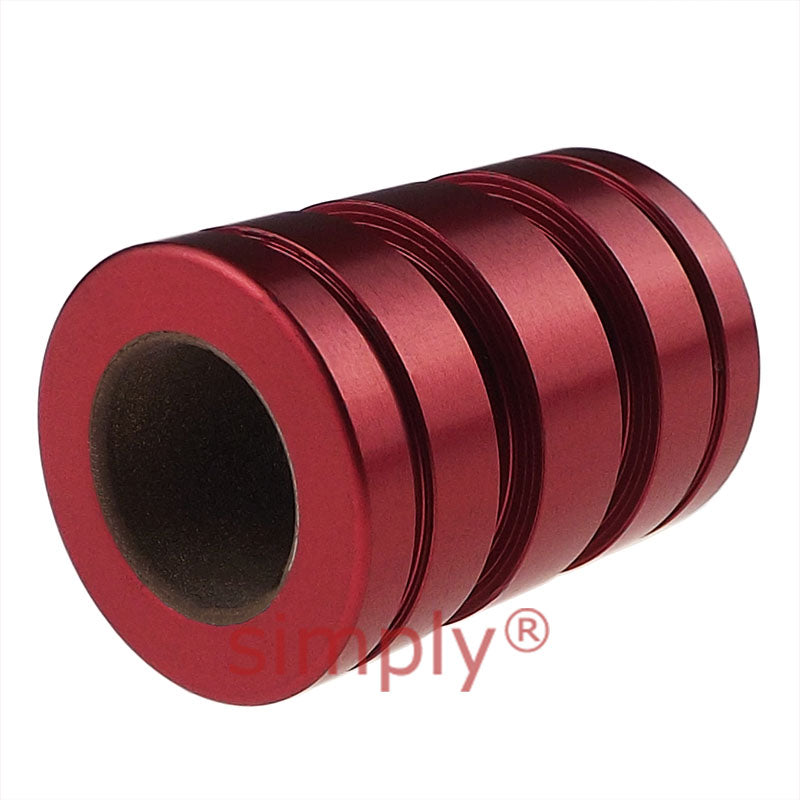

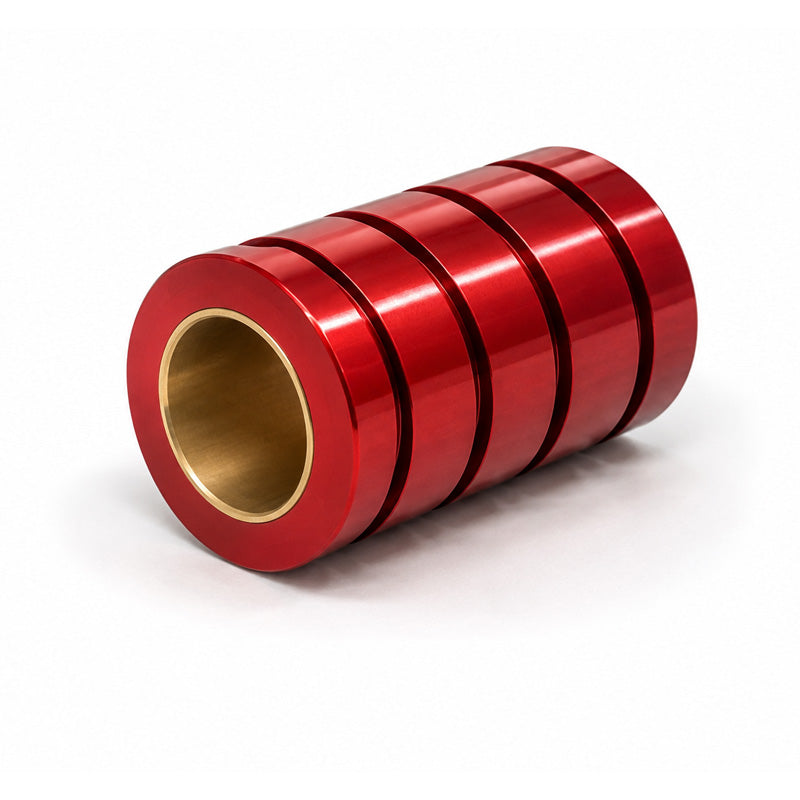

PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
Technical

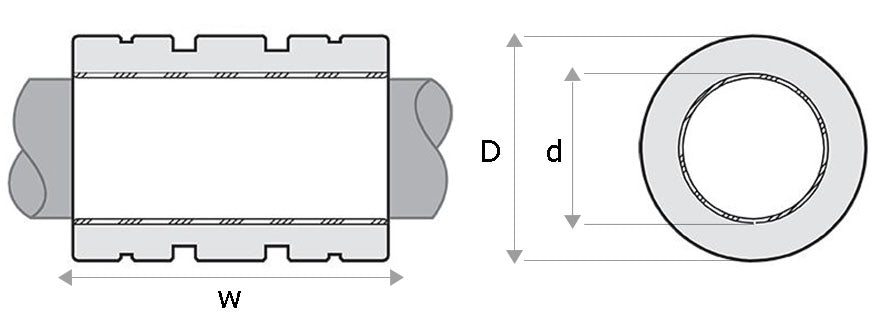

| Inside Diameter | = | 63.5mm = 2.5 (2-1/2) inch |
| Outside Diameter | = | 95.25mm = 3.75 (3-3/4) inch |
| Width | = | 127mm = 5 inch |
| Nominal Bore Size | = | 2-1/2 inch |
| Effective Surface Area (Square Inch) | = | 13kg |
| Max Static Load | = | 173.33kN |
| Weight | = | 1.277kg |
