SKU: FL12-PBC

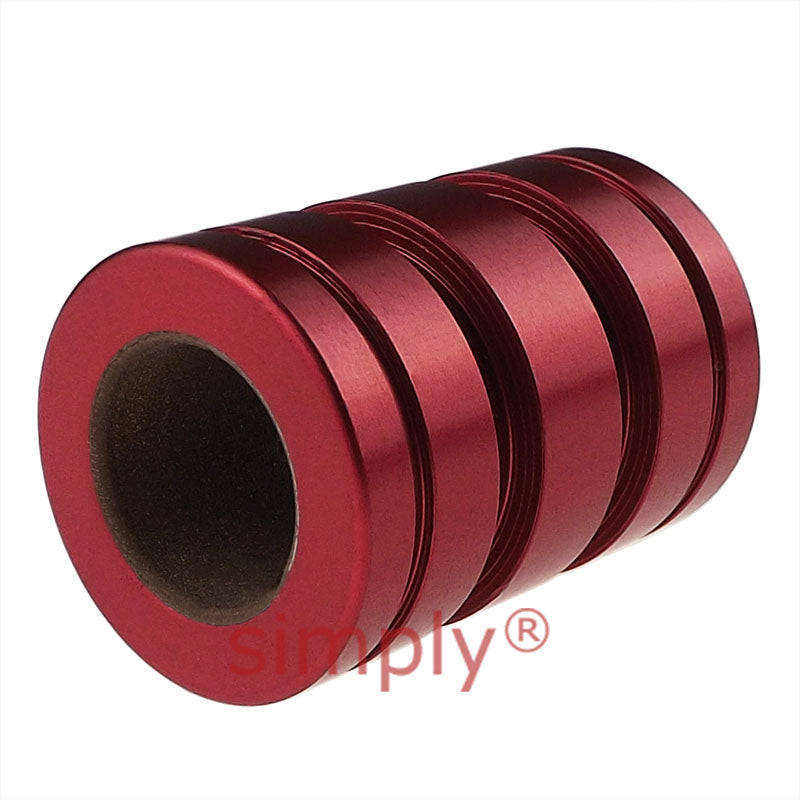

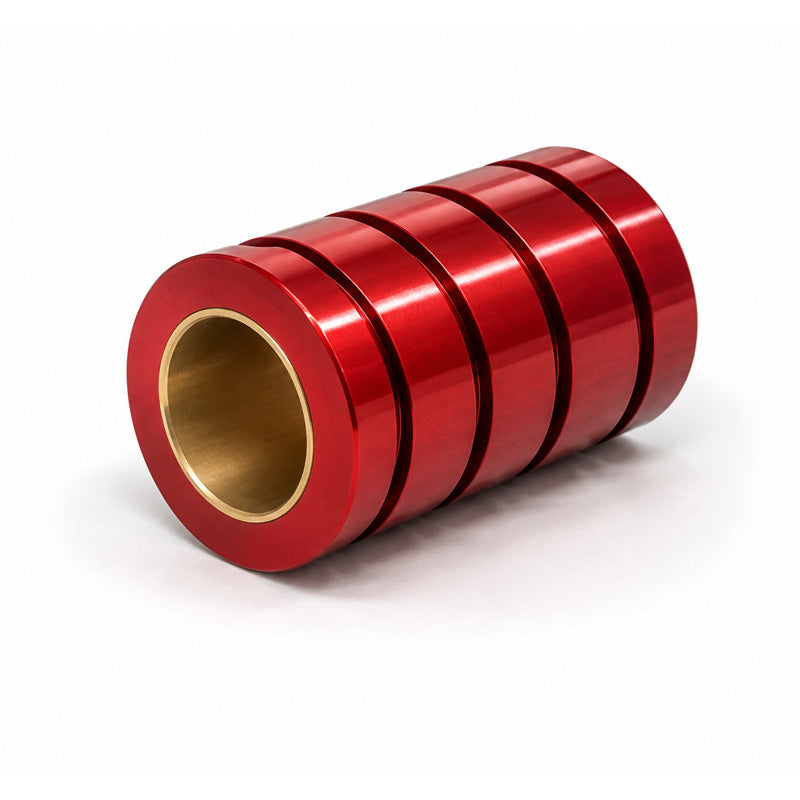

PBC FL 12 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 0.75x1.25x1.625 inch (Allow 2-3 Days)
- Regular price
- $75.91 ex VAT
- Sale price
- $75.91
- Regular price
-
Not in stock
Quantity Price Breaks
3
$67.56
5
$63.76
9
$63.01
19
$62.25
49
$61.49
74
$60.73
99
$56.93
199
$56.17
249
$55.41
499
$54.66
999
$53.14
SKU:
FL12-PBC
PBC FL 12 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 0.75x1.25x1.625 inch (Allow 2-3 Days)
- Regular price
- $75.91 ex VAT
- Sale price
- $75.91
- Regular price
-
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
Technical
| Inside Diameter | = | 19.05mm = 0.75 (3/4) inch |
| Outside Diameter | = | 31.75mm = 1.25 (1-1/4) inch |
| Width | = | 41.28mm = 1.625 (1-5/8) inch |
| Nominal Bore Size | = | 3/4 inch |
| Effective Surface Area (Square Inch) | = | 1.27kg |
| Max Static Load | = | 16.93kN |
| Weight | = | 0.049kg |
