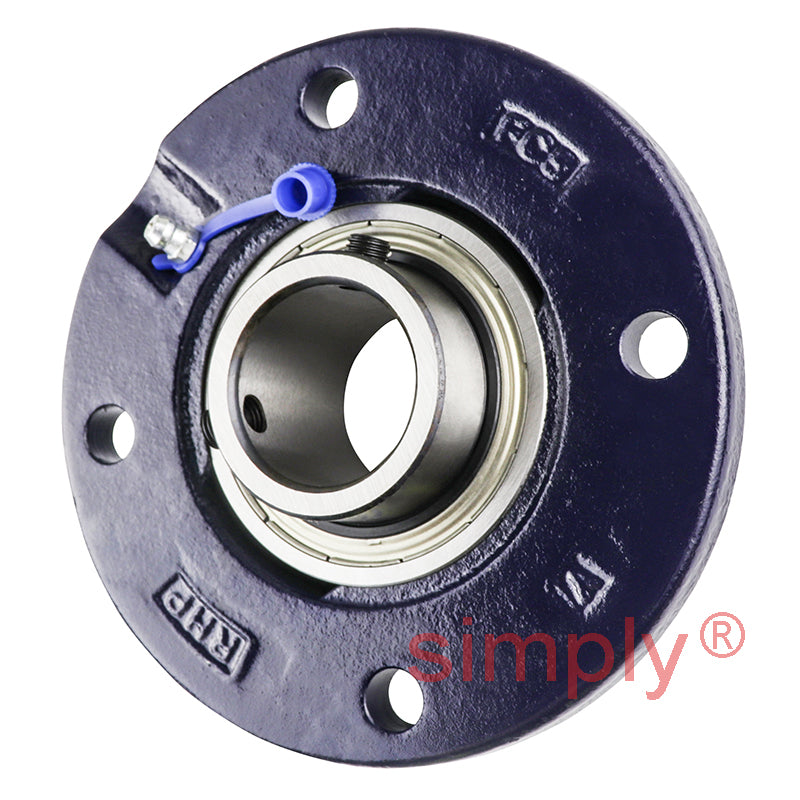

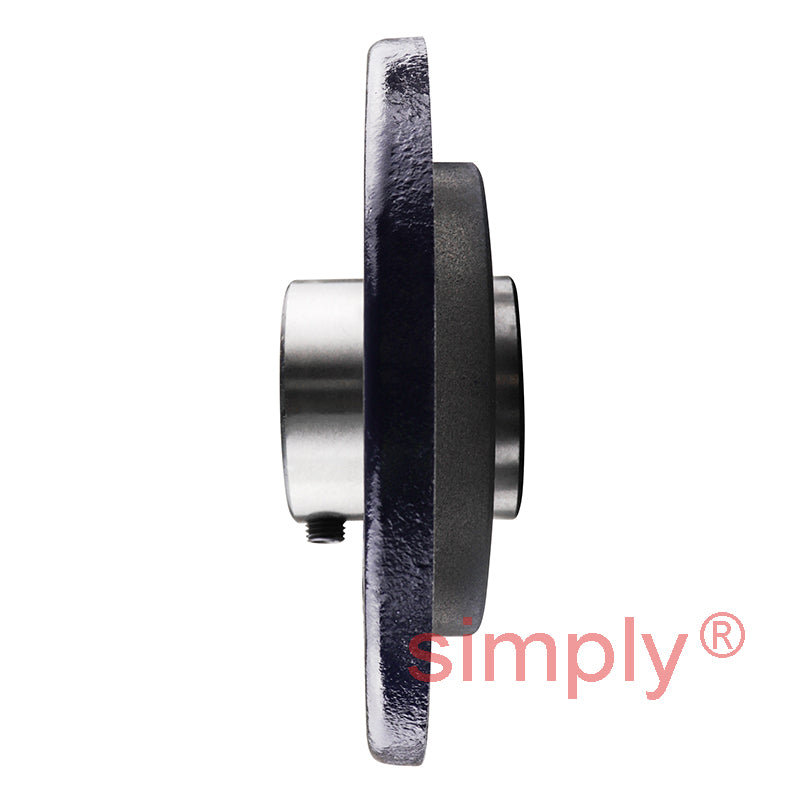

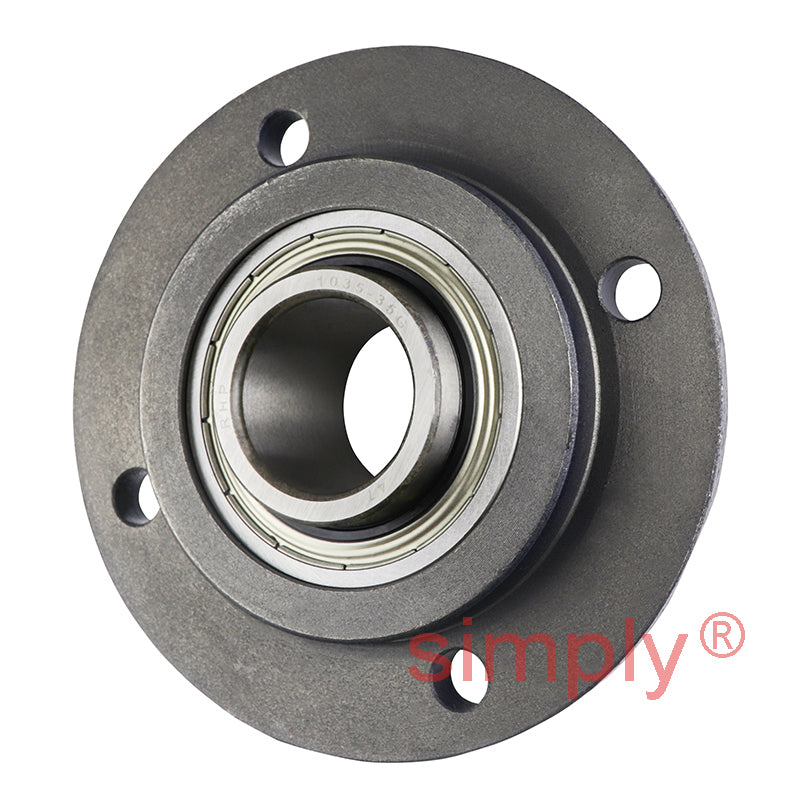

RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

SKU: FC35-RHP

RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

$116.13 ex VAT
$116.13
ex VAT
In stock

Quantity Price Breaks

10+ $103.36
19+ $97.55
29+ $96.39
39+ $95.23
49+ $94.07
74+ $92.90
99+ $87.10
199+ $85.94
249+ $84.77
499+ $83.61
999+ $81.29
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
SKU: FC35-RHP

RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

$116.13 ex VAT
$116.13
ex VAT

Description

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert

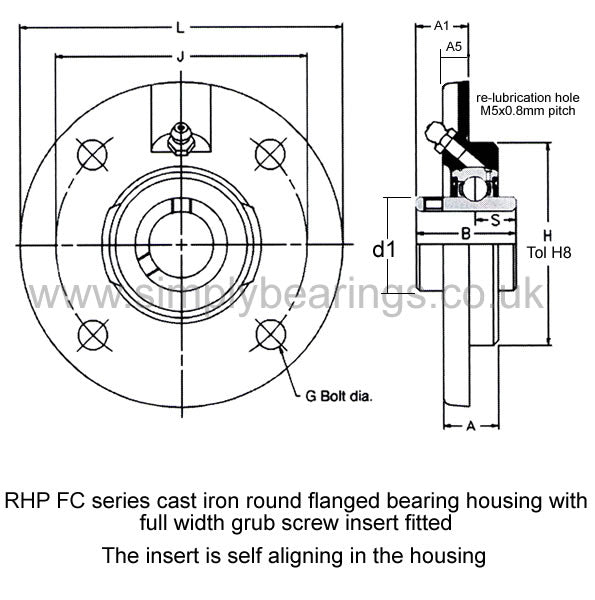

Technical

Bore = 35mm
L = 135mm
H = 90mm
J = 110mm
G = 10mm
A = 20.5mm
A1 = 24.4mm
A5 = 10mm
B = 42.88mm
s = 17.53mm
d1 = 46.69mm
Dynamic load = 25700 N
Static load = 15300 N
Rec max speed = 4500 rpm
Weight = 1.5 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1035-35G+insonly"
> = 1035-35G Click Here<
/a> =
Casting group = 5
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
