SKU: FC1.3/4-RHP

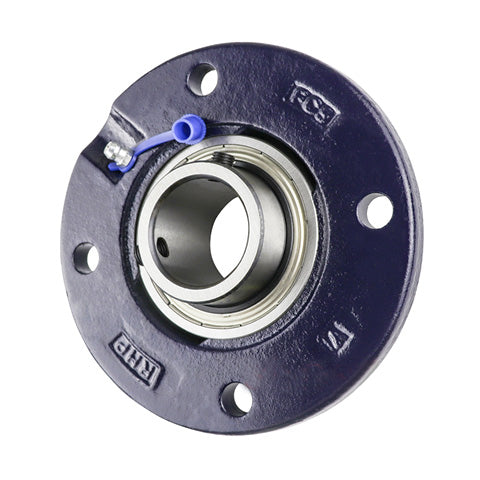

RHP FC1.3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
- Regular price
- $170.79 ex VAT
- Sale price
- $170.79
- Regular price
-
In stock
Quantity Price Breaks
10+
$152.00
19+
$143.46
29+
$141.76
39+
$140.05
49+
$138.34
74+
$136.63
99+
$128.09
199+
$126.38
249+
$124.68
499+
$122.97
999+
$119.55
SKU:
FC1.3/4-RHP
RHP FC1.3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
- Regular price
- $170.79 ex VAT
- Sale price
- $170.79
- Regular price
-
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-3/4 inch |
| L | = | 6.102 inch |
| H | = | 4.134 inch |
| J | = | 5.118 inch |
| G | = | 0.5 inch |
| A | = | 0.984 inch |
| A1 | = | 1.109 inch |
| A5 | = | 0.472 inch |
| B | = | 1.938 inch |
| s | = | 0.752 inch |
| d1 | = | 2.256 inch |
| Dynamic load | = | 32500 N |
| Static load | = | 20500 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-1-3/4G+insonly" |
| > | = | 1050-1-3/4G Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
