SKU: F9-17G-EU

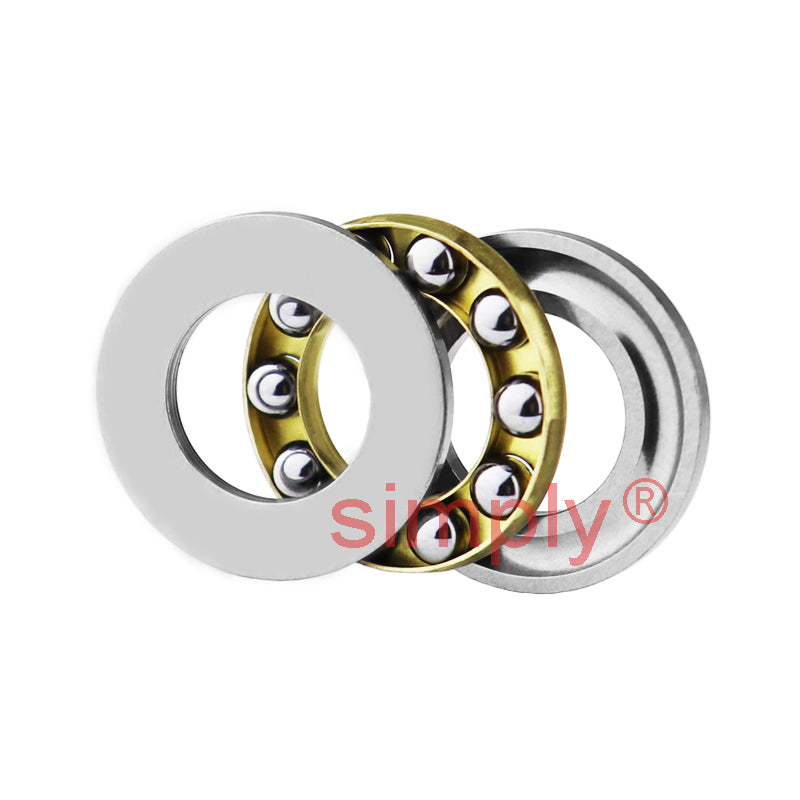

F9-17G Budget Single Thrust Ball Bearing with Grooved Washers 9x17x5mm
- Regular price
- $14.29 ex VAT
- Sale price
- $14.29
- Regular price
-
In stock
Quantity Price Breaks
10
$12.72
19
$12.00
29
$11.86
39
$11.72
49
$11.57
74
$11.43
99
$10.72
199
$10.57
249
$10.43
499
$10.29
999
$10.00
SKU:
F9-17G-EU
F9-17G Budget Single Thrust Ball Bearing with Grooved Washers 9x17x5mm
- Regular price
- $14.29 ex VAT
- Sale price
- $14.29
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 9mm (+/-0.008mm) |
| D | = | 17mm (+0/-0.011mm) |
| H | = | 5mm (+0/-0.075mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 0.56 kN |
| Static load Co | = | 0.49 kN |
| Weight | = | 0.005 kg |
| Limiting Speed | = | 22000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
