SKU: F8-16G-EU

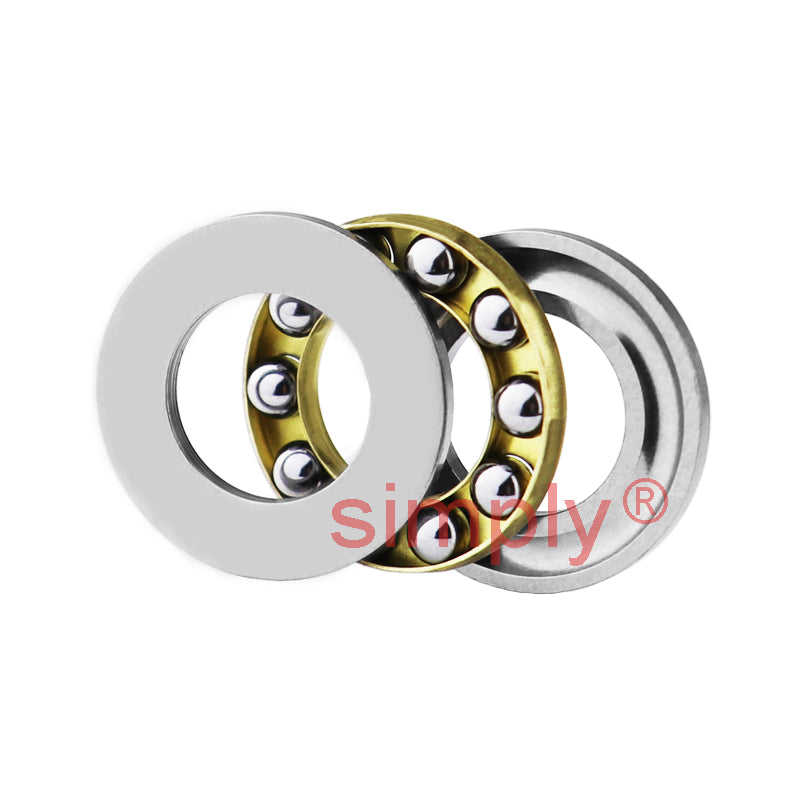

F8-16G Budget Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
- Regular price
- $5.78 ex VAT
- Sale price
- $5.78
- Regular price
-
In stock
Quantity Price Breaks
10
$5.14
19
$4.86
29
$4.80
39
$4.74
49
$4.68
74
$4.62
99
$4.34
199
$4.28
249
$4.22
499
$4.16
999
$4.05
SKU:
F8-16G-EU
F8-16G Budget Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
- Regular price
- $5.78 ex VAT
- Sale price
- $5.78
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical

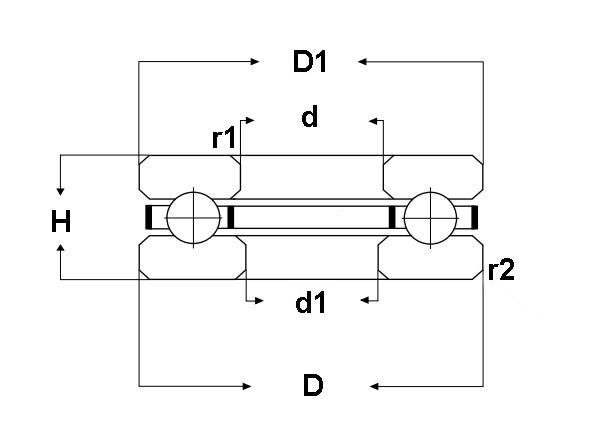

| d | = | 8mm (+0/-0.05mm) |
| D | = | 16mm (+0.005/-0.020mm) |
| H | = | 5mm (+0/-0.075mm) |
| d1 | = | 8.2mm (+0/-0.011mm) |
| D1 | = | 15.8mm (+0/-0.008mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 3.844 kN |
| Static load Co | = | 4.894 kN |
| Limiting speed | = | 16000 rpm |
| Weight | = | 0.004 kg |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
