SKU: F8-16-EU

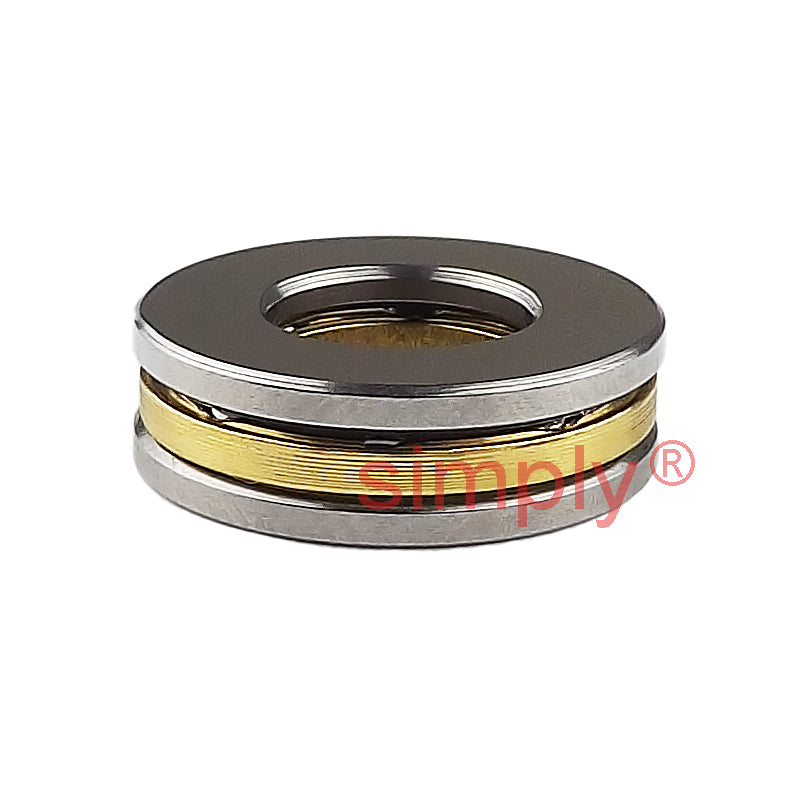

F8-16 Budget Single Thrust Ball Bearing 8x16x5mm
- Regular price
- $6.10 ex VAT
- Sale price
- $6.10
- Regular price
-
In stock
Quantity Price Breaks
10
$5.43
19
$5.12
29
$5.06
39
$5.00
49
$4.94
74
$4.88
99
$4.58
199
$4.51
249
$4.45
499
$4.39
999
$4.27
SKU:
F8-16-EU
F8-16 Budget Single Thrust Ball Bearing 8x16x5mm
- Regular price
- $6.10 ex VAT
- Sale price
- $6.10
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

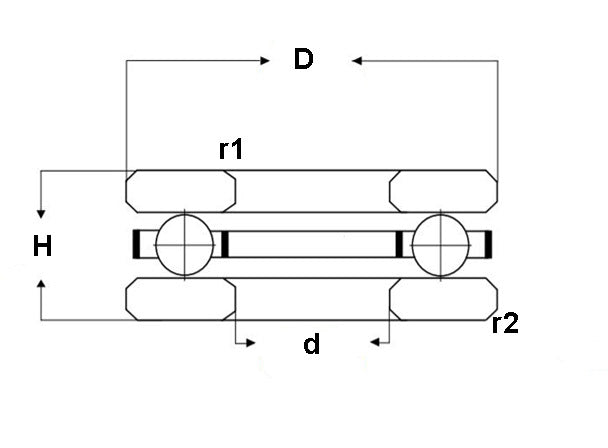

Technical
| d | = | 8mm (+/-0.008mm) |
| D | = | 16mm (+0/-0.011mm) |
| H | = | 5mm (+0/-0.075mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 3.844 kN |
| Static load Co | = | 4.89 kN |
| Weight | = | 0.005 kg |
| Limiting Speed | = | 16000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
