SKU: F7-15-EU
F7-15 Budget Single Thrust Ball Bearing 7x15x5mm
- Regular price
- $5.78 ex VAT
- Sale price
- $5.78
- Regular price
-
In stock
Quantity Price Breaks
10
$5.14
19
$4.86
29
$4.80
39
$4.74
49
$4.68
74
$4.62
99
$4.34
199
$4.28
249
$4.22
499
$4.16
999
$4.05
SKU:
F7-15-EU

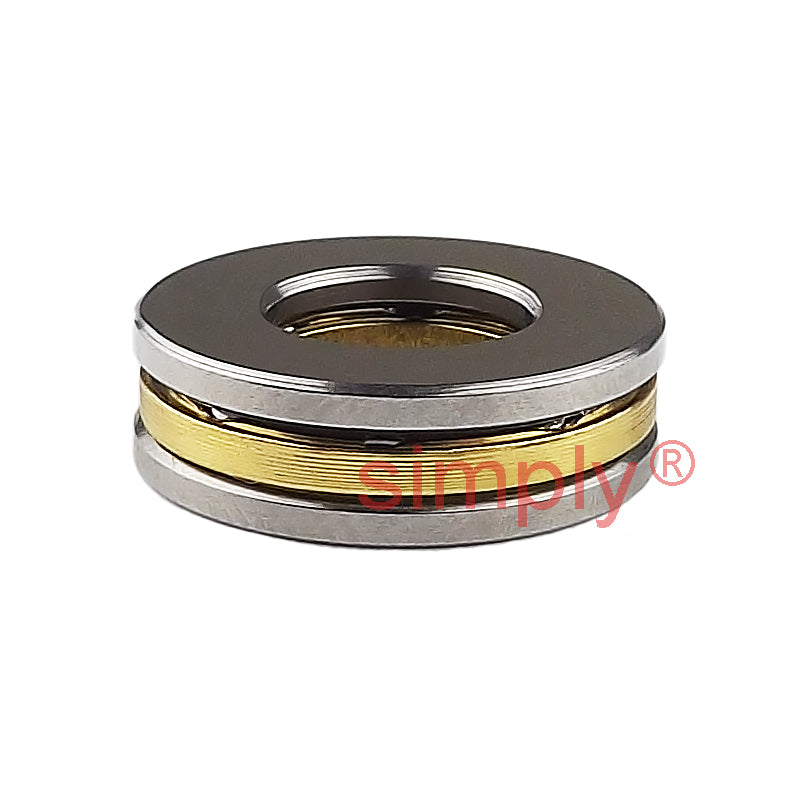

F7-15 Budget Single Thrust Ball Bearing 7x15x5mm
- Regular price
- $5.78 ex VAT
- Sale price
- $5.78
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 7mm(+0/0.008mm) |
| D | = | 15mm(+0/-0.011mm) |
| H | = | 5mm(+0/-0.075mm) |
| Dynamic load C | = | 0.77 kN |
| r1r2 min | = | 0.2mm |
| Static load Co | = | 0.62 kN |
| Weight | = | 0.003 kg |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
