SKU: F6-12-EU

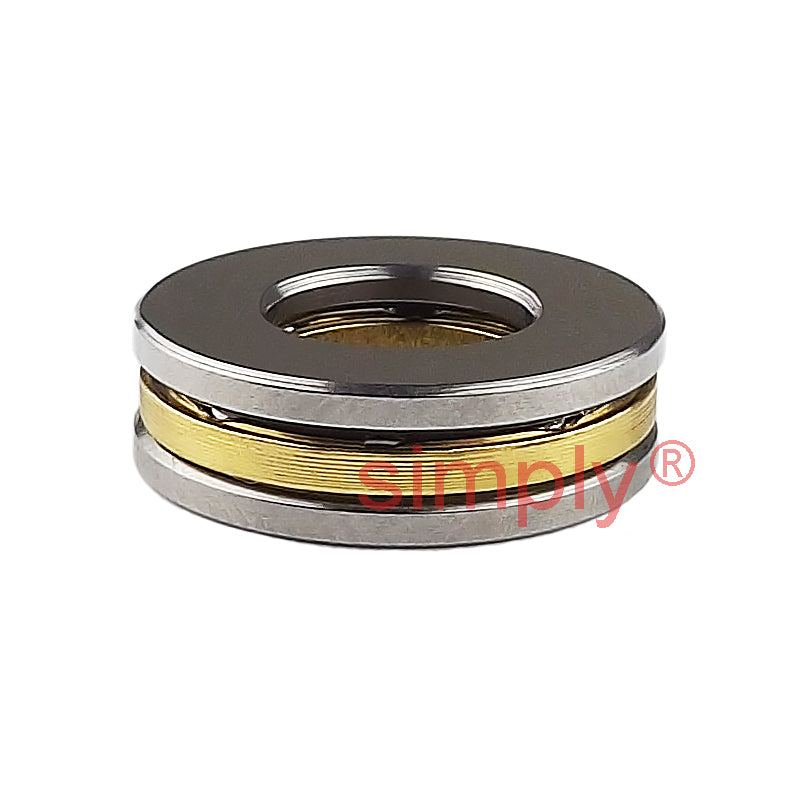

F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
- Regular price
- $9.63 ex VAT
- Sale price
- $9.63
- Regular price
-
In stock
Quantity Price Breaks
10
$8.57
19
$8.09
29
$7.99
39
$7.90
49
$7.80
74
$7.70
99
$7.22
199
$7.13
249
$7.03
499
$6.93
999
$6.74
SKU:
F6-12-EU
F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
- Regular price
- $9.63 ex VAT
- Sale price
- $9.63
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 6mm (+/-0.008mm) |
| D | = | 12mm (+0/-0.011mm) |
| H | = | 4.5mm (+0/-0.075mm) |
| r1r2 min | = | 0.15mm |
| Dynamic load C | = | 0.38 kN |
| Static load Co | = | 0.3 kN |
| Weight | = | 0.0025 kg |
| Limiting Speed | = | 18000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
