SKU: F4-9G-EU

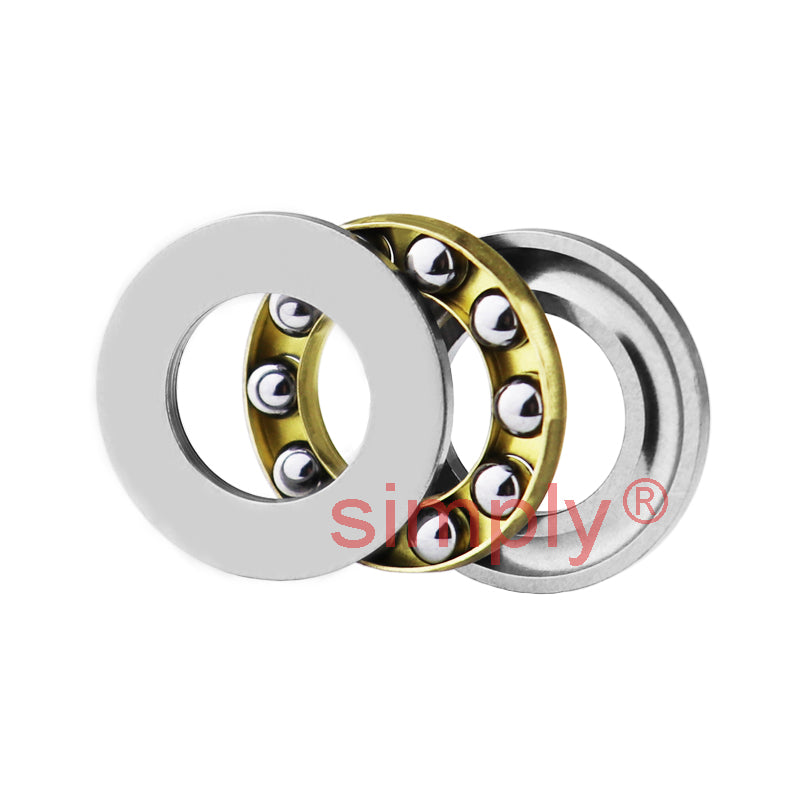

F4-9G Budget Single Thrust Ball Bearing with Grooved Washers 4x9x4mm
- Regular price
- $4.96 ex VAT
- Sale price
- $4.96
- Regular price
-
In stock
Quantity Price Breaks
10
$4.41
19
$4.17
29
$4.12
39
$4.07
49
$4.02
74
$3.97
99
$3.72
199
$3.67
249
$3.62
499
$3.57
999
$3.47
SKU:
F4-9G-EU
F4-9G Budget Single Thrust Ball Bearing with Grooved Washers 4x9x4mm
- Regular price
- $4.96 ex VAT
- Sale price
- $4.96
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

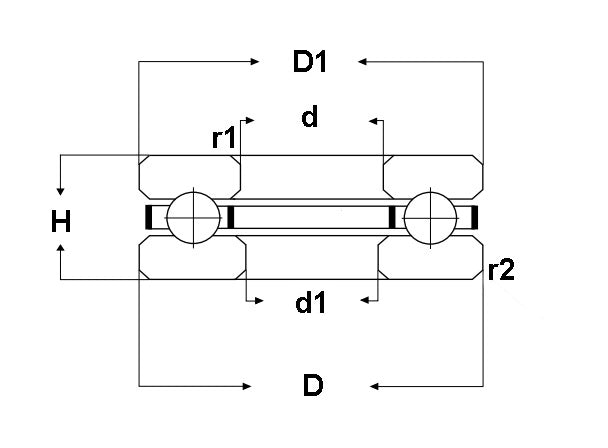

Technical
| d | = | 4mm (+0/-0.05mm) |
| D | = | 9mm (+0.005/-0.020mm) |
| H | = | 4mm (+0/-0.075mm) |
| d1 | = | 4.2mm (+0/-0.011mm) |
| D1 | = | 8.8mm (+0/-0.008mm) |
| r1r2 min | = | 0.2mm |
| Dynamic load C | = | 0.922 kN |
| Static load Co | = | 0.912 kN |
| Limiting speed | = | 22000 rpm |
| Weight | = | 0.002 kg |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
