SKU: F10-18-MB

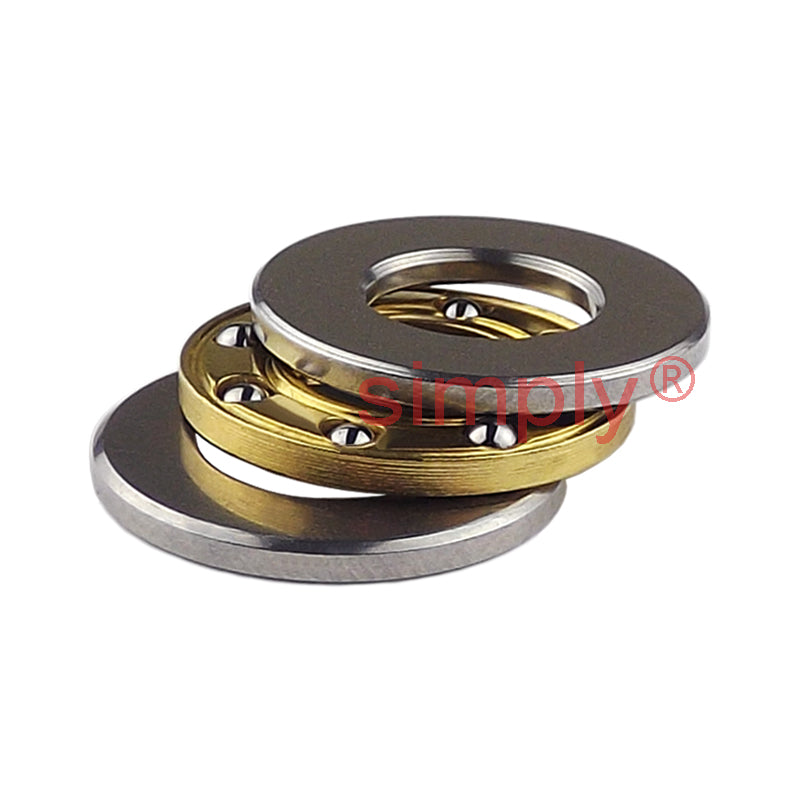

F10-18 Major Brand Single Thrust Ball Bearing 10x18x5.5mm
- Regular price
- $12.75 ex VAT
- Sale price
- $12.75
- Regular price
-
In stock
Quantity Price Breaks
10+
$11.35
19+
$10.71
29+
$10.58
39+
$10.46
49+
$10.33
74+
$10.20
99+
$9.56
199+
$9.44
249+
$9.31
499+
$9.18
999+
$8.93
SKU:
F10-18-MB
F10-18 Major Brand Single Thrust Ball Bearing 10x18x5.5mm
- Regular price
- $12.75 ex VAT
- Sale price
- $12.75
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical

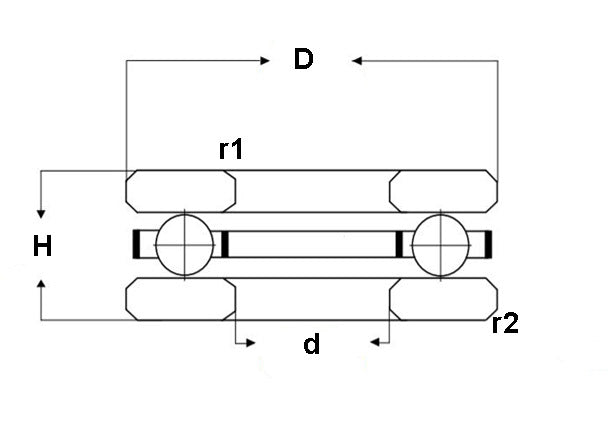

| d | = | 10mm |
| D | = | 18mm |
| H | = | 5.5mm |
| Dynamic load C | = | 0.78 kN |
| Static load Co | = | 0.7 kN |
| Limiting speed | = | 14000 rpm |
| Weight | = | 0.006 kg |
| r1r2 min | = | 0.3mm |
