SKU: EFN40-20-502-DURB

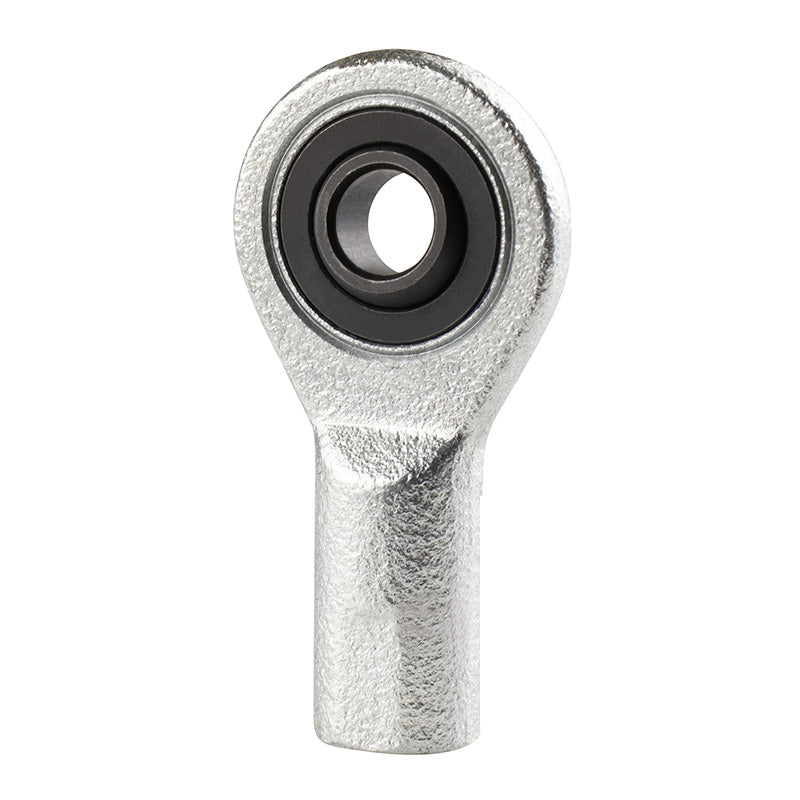

Durbal EFN40-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M42x3 Thread
- Regular price
- $337.23 ex VAT
- Sale price
- $337.23
- Regular price
-
In stock
Quantity Price Breaks
10
$300.13
19
$283.27
29
$279.90
39
$276.53
49
$273.16
74
$269.78
99
$252.92
199
$249.55
249
$246.18
499
$242.81
999
$236.06
SKU:
EFN40-20-502-DURB
Durbal EFN40-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M42x3 Thread
- Regular price
- $337.23 ex VAT
- Sale price
- $337.23
- Regular price
-
Technical
| Thread Direction | = | -502 (Left) |
| d | = | 40mm |
| G (Thread) | = | M42x3mm |
| B | = | 28mm |
| C1 | = | 22mm |
| h1 | = | 145mm |
| d1 | = | 45mm |
| d2 | = | 92mm |
| d3 | = | 60mm |
| dk | = | 53mm |
| l3 | = | 71mm |
| l4 | = | 191mm |
| l5 | = | 24.5mm |
| l7 | = | 42mm |
| W | = | 50mm |
| tilt angle & | = | alpha |
| = | 7 deg | |
| weight | = | 2kg |
| basic load rating dyn C | = | 86 kN |
| basic load rating stat Co | = | 180 kN |
| radial clearance CN | = | 40-120 & |
| micro | = | m |
