SKU: EFN08-20-502-DURB

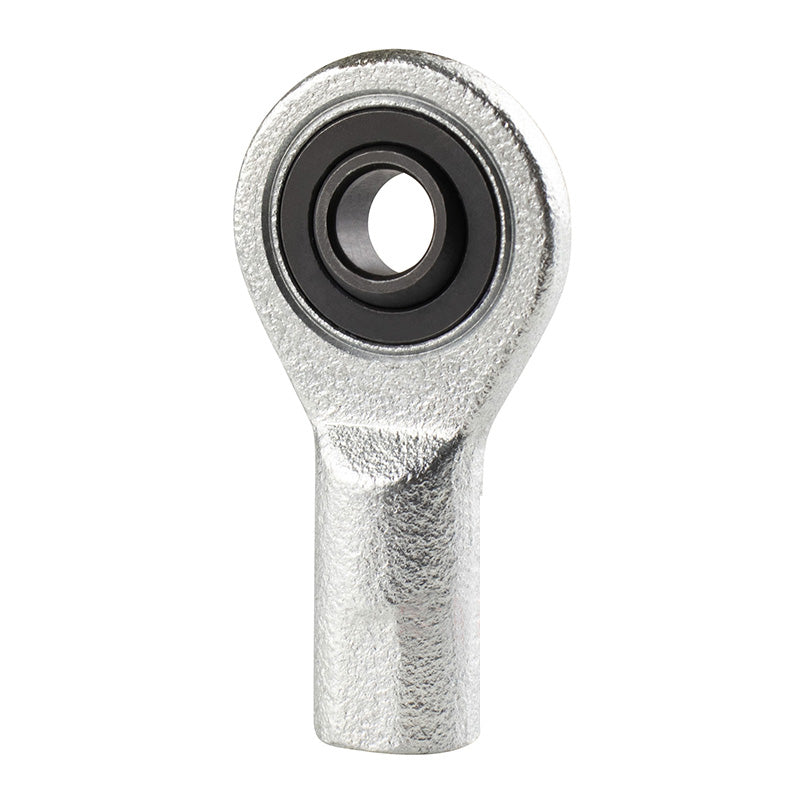

Durbal EFN08-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M8 Thread
- Regular price
- $42.33 ex VAT
- Sale price
- $42.33
- Regular price
-
In stock
Quantity Price Breaks
10
$37.67
19
$35.56
29
$35.13
39
$34.71
49
$34.29
74
$33.86
99
$31.75
199
$31.32
249
$30.90
499
$30.48
999
$29.63
SKU:
EFN08-20-502-DURB
Durbal EFN08-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M8 Thread
- Regular price
- $42.33 ex VAT
- Sale price
- $42.33
- Regular price
-
Description
DESC_EFNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
Technical
| Thread Direction | = | -502 (Left) |
| d | = | 8mm |
| G (Thread) | = | M8mm |
| B | = | 8mm |
| C1 | = | 5mm |
| h1 | = | 36mm |
| d1 | = | 10mm |
| d2 | = | 23mm |
| d3 | = | 13mm |
| dk | = | 13mm |
| l3 | = | 16mm |
| l4 | = | 47.5mm |
| l5 | = | 10.5mm |
| l7 | = | 12mm |
| W | = | 11mm |
| tilt angle & | = | alpha |
| = | 15 deg | |
| weight | = | 0.039kg |
| basic load rating dyn C | = | 4.2 kN |
| basic load rating stat Co | = | 13 kN |
| radial clearance CN | = | 32-68 & |
| micro | = | m |
