SKU: DL80/50SS-50X92X78

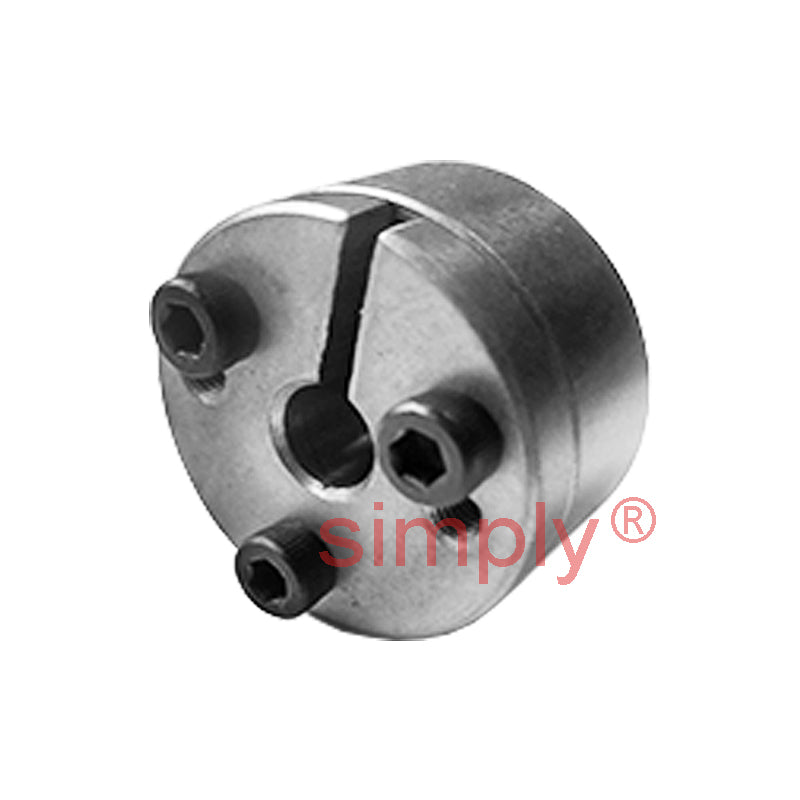

Major Branded DL80/50SS Stainless Steel DRIVELOCK Bush 50x92x78mm - Allow 2-3 Days
- Regular price
- $458.16 ex VAT
- Sale price
- $458.16
- Regular price
-
Quantity Price Breaks
Major Branded DL80/50SS Stainless Steel DRIVELOCK Bush 50x92x78mm - Allow 2-3 Days
- Regular price
- $458.16 ex VAT
- Sale price
- $458.16
- Regular price
-
Description
DRIVELOCK 80 Stainless Bushes: These bushes are made from high-quality stainless steel (303/304), ensuring excellent corrosion resistance and durability. Designed for low torque applications from 22 to 910 Nm, these bushes feature a self-centering mechanism ideal for thin-walled hubs, providing precise alignment and secure connections. They come in bore sizes from 10mm to 50mm, with options for imperial sizes, offering versatile compatibility for various shaft dimensions and industrial needs.
Benefits: Corrosion resistance, self-centering precision, versatility in bore sizes
Technical

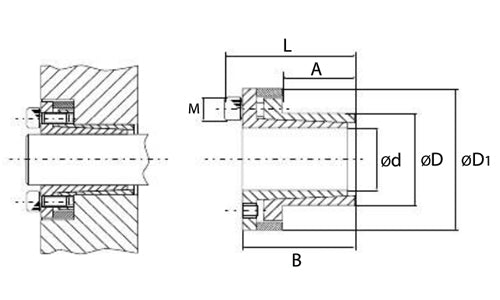

| Material | = | Stainless Steel |
| d | = | 50mm |
| D | = | 65mm |
| D1 | = | 92mm |
| A | = | 45mm |
| B | = | 70mm |
| L | = | 78mm |
| M (screws) | = | M8 |
| Ts | = | 18 Nm |
| T | = | 910 Nm |
| F | = | 36 kN |
| p | = | 33 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 1.4 kg |
