SKU: DL71/35-35X66X45

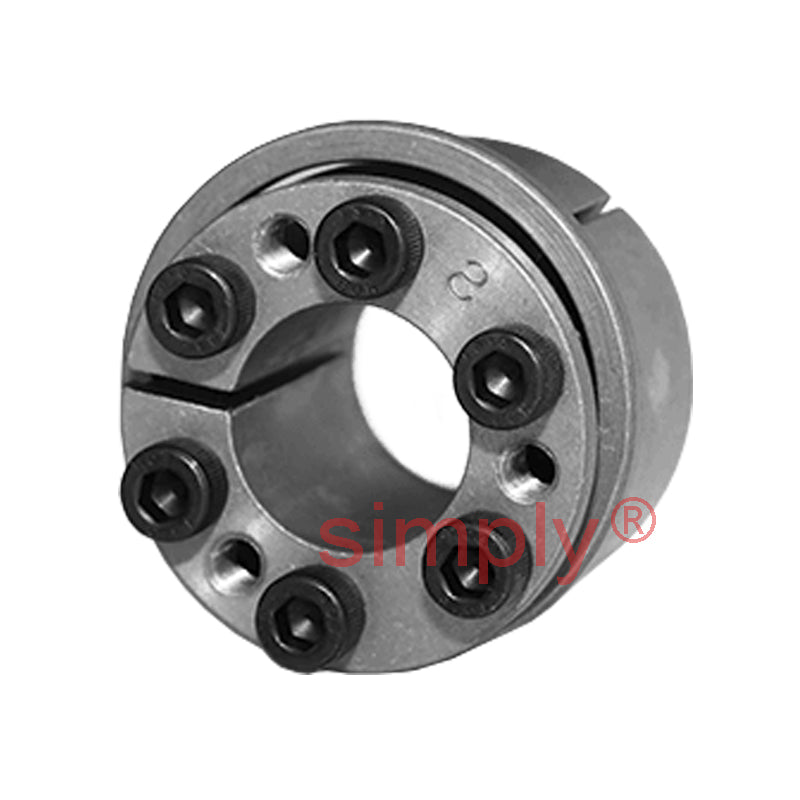

Major Branded DL71/35 Steel DRIVELOCK Bush 35x66x45mm - Allow 2-3 Days
- Regular price
- $30.00 ex VAT
- Sale price
- $30.00
- Regular price
-
Quantity Price Breaks
Major Branded DL71/35 Steel DRIVELOCK Bush 35x66x45mm - Allow 2-3 Days
- Regular price
- $30.00 ex VAT
- Sale price
- $30.00
- Regular price
-
Description
DRIVELOCK 71 Bushes: These bushes are precision-engineered, self-centering components designed to handle high torques ranging from 294 to 33,600 Nm. Their self-centering feature ensures accurate alignment between the shaft and hub, which minimizes vibration and mechanical stress, promoting smoother operation. These bushes are available in bore sizes from 19mm to 180mm and can also be provided in imperial sizes upon request. Ideal for heavy-duty applications, DRIVELOCK 71 Bushes offer a robust and reliable solution for various industrial machinery and equipment needs.
Benefits: Self-centering precision, versatility in bore sizes, medium-high torque handling
Technical
| Material | = | Steel |
| d (h8) | = | 35mm |
| D | = | 60mm |
| D1 | = | 66mm |
| M (screws) | = | M6 |
| L | = | 45mm |
| A | = | 31mm |
| B | = | 39mm |
| Ts | = | 17 Nm |
| T | = | 843 Nm |
| F | = | 68 kN |
| P | = | 118 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 0.6 kg |
