SKU: DL61/5-5X16X13.5

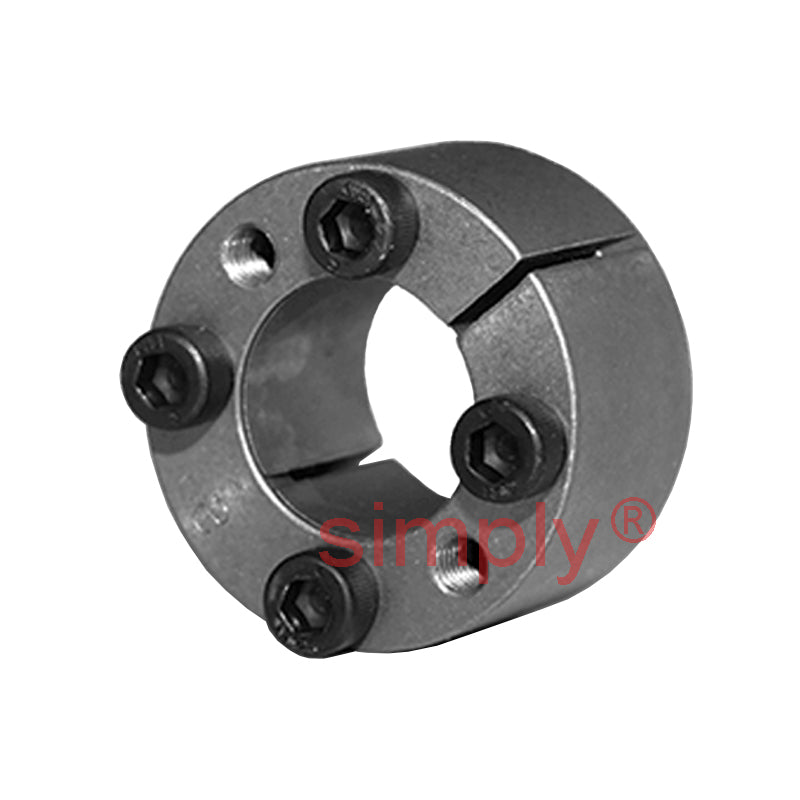

Major Branded DL61/5 Steel DRIVELOCK Bush 5x16x13.5mm - Allow 2-3 Days
- Regular price
- $40.42 ex VAT
- Sale price
- $40.42
- Regular price
-
Quantity Price Breaks
Major Branded DL61/5 Steel DRIVELOCK Bush 5x16x13.5mm - Allow 2-3 Days
- Regular price
- $40.42 ex VAT
- Sale price
- $40.42
- Regular price
-
Description
DRIVELOCK 61 Bushes: These bushes are self-centering components designed to provide reliable and precise shaft-hub connections for medium torque applications, ranging from 5 to 1,900 Nm. Their self-centering feature ensures accurate alignment, reducing mechanical stress and vibration. They are available in bore sizes from 5 mm to 50 mm and can also be supplied in imperial sizes upon request. The DRIVELOCK 61 Bushes offer a versatile and efficient solution for a variety of machinery and equipment, ensuring smooth operation and extended component life.
Benefits: Self-centering precision, medium torque handling, versatility in bore sizes
Technical
| Material | = | Steel |
| d (h8) | = | 5mm |
| D | = | 16mm |
| L1 | = | 11mm |
| L | = | 13.5mm |
| M (screws) | = | M2.5 |
| Ts | = | 1.2 Nm |
| T | = | 5 Nm |
| F | = | 2 kN |
| p | = | 55 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 0.012 kg |
