SKU: DL40/85-85X125X40

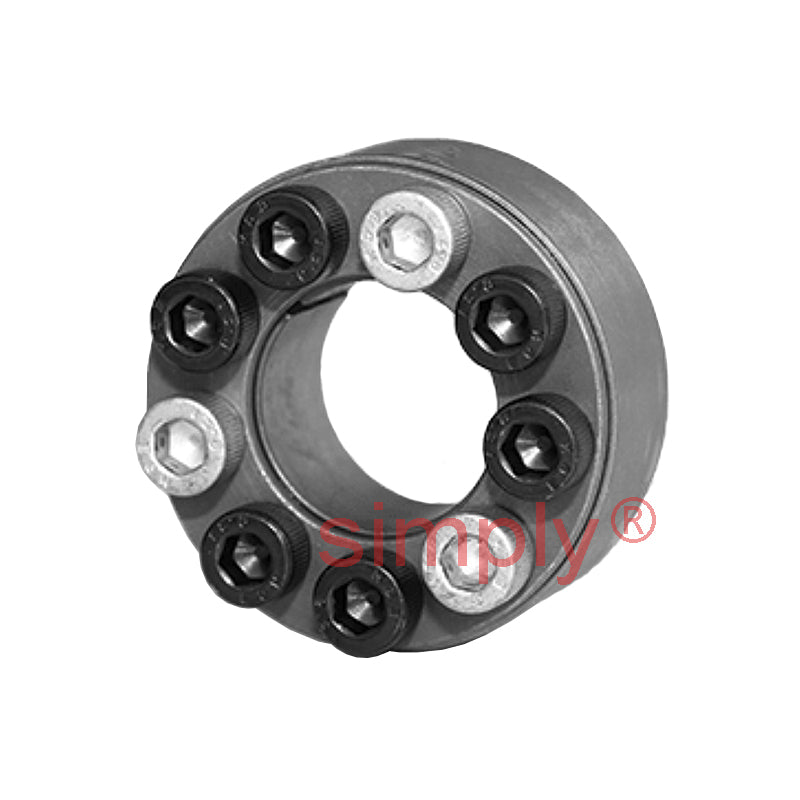

Major Branded DL40/85 Steel DRIVELOCK Bush 85x125x40mm - Allow 2-3 Days
- Regular price
- $70.93 ex VAT
- Sale price
- $70.93
- Regular price
-
Quantity Price Breaks
Major Branded DL40/85 Steel DRIVELOCK Bush 85x125x40mm - Allow 2-3 Days
- Regular price
- $70.93 ex VAT
- Sale price
- $70.93
- Regular price
-
Description
DRIVELOCK 40 Bushes: These bushes are engineered to deliver exceptional performance for high-torque applications, handling loads ranging from 290 to 66,800 Nm. Unlike self-centering models, these bushes are designed for applications where precise alignment is achieved through other means. They accommodate bore sizes from 19mm to 220mm, with options for imperial sizes available upon request. The robust design of DRIVELOCK 40 Bushes ensures reliable and stable connections in demanding environments, making them ideal for heavy-duty machinery where high torque and durability are critical.
Benefits: High torque capacity, robust design for heavy-duty use, versatility in bore sizes
Technical
| Material | = | Steel |
| d (h8) | = | 85mm |
| D | = | 125mm |
| L1 | = | 24mm |
| L | = | 28mm |
| M (screws) | = | M10 |
| H | = | 40mm |
| Ts | = | 70 Nm |
| T | = | 6230 Nm |
| F | = | 144 kN |
| p | = | 127 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 1.49 kg |
