SKU: DKRCFB-06-10-AG-FLEX
FLEXEQUIP/VOSS 3/8 inch BSP Female Two Piece Hose Fitting with 90 Degree Angle Elbowand 27mm Crimp Nut - Allow 2-3 Days
- Regular price
- $12.49 ex VAT
- Sale price
- $12.49
- Regular price
-
Quantity Price Breaks
FLEXEQUIP/VOSS 3/8 inch BSP Female Two Piece Hose Fitting with 90 Degree Angle Elbowand 27mm Crimp Nut - Allow 2-3 Days
- Regular price
- $12.49 ex VAT
- Sale price
- $12.49
- Regular price
-
Description

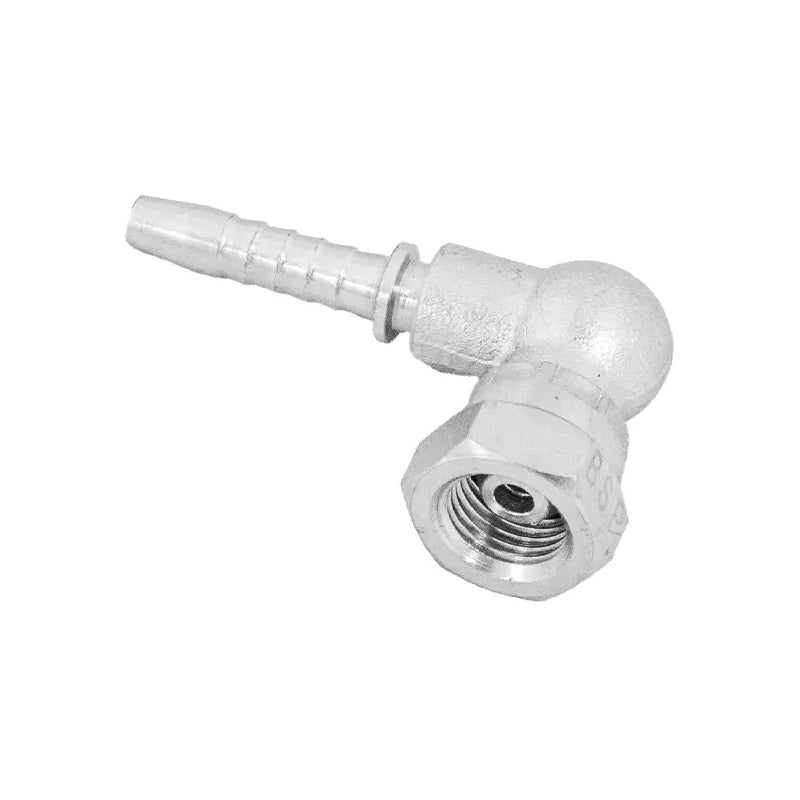

FLEXEQUIP/VOSS Female Two Piece Hose Fitting with 90 Degree Angle Elbow and Crimp Nut: These hose fittings are forged ball-type fittings, commonly used in the UK and Ireland for agricultural and standard hydraulic applications. Featuring a BSP thread and a 90 degree angle, this compact elbow fitting meets ISO 12151-6 (ISO 8434-6) standards, ensuring reliable and leak-free performance. Precision-engineered for perfect alignment between fittings and couplings, it offers exceptional durability and assembly reliability. Built on decades of expertise, this fitting provides versatile, long-lasting performance, ensuring the efficiency of your hydraulic systems.
Benefits: Precision engineered, provide perfect alignment, leakage and assembly reliability
Technical
| Hose Bore | = | 3/8 inch |
| Thread (d2) | = | 3/8 inch |
| DN Size | = | 10mm |
| Total Length (lg) | = | 55mm |
| Length (lh) | = | 23mm |
| Cut Off (lx) | = | 26mm |
| Bore Size (dx) | = | 10mm |
| Nut Size (SW) | = | 22mm |
| Angle | = | 90 degrees |
| Weight | = | 0.072 kg |
