SKU: DKR-04-06-FLEX

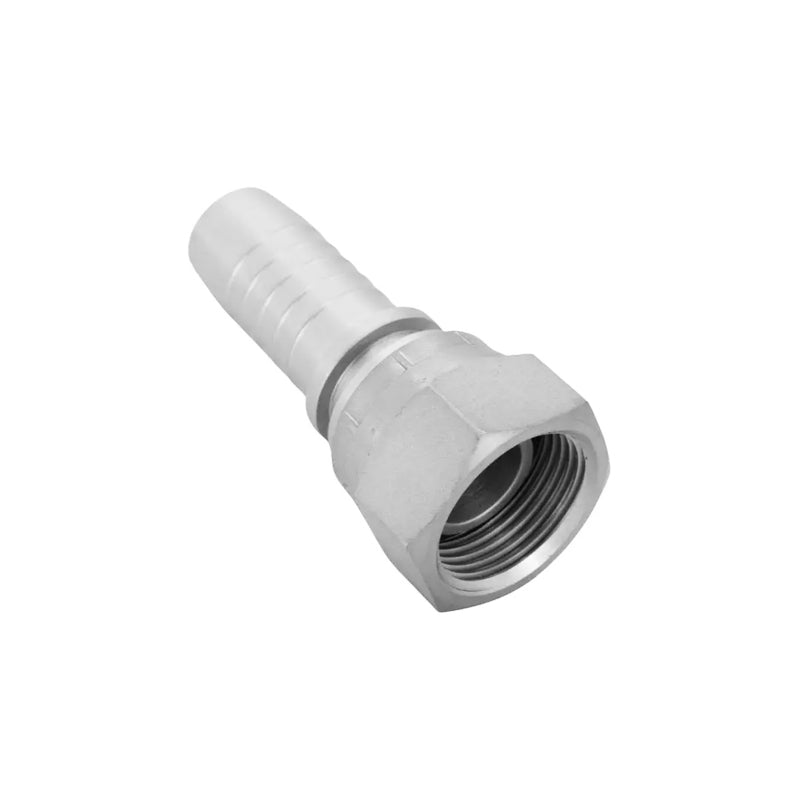

FLEXEQUIP/VOSS 1/4 inch BSP Female Two Piece Hose Fitting with 60 Degree Cone and 19mm Slip Nut - Allow 2-3 Days
- Regular price
- $6.87 ex VAT
- Sale price
- $6.87
- Regular price
-
Quantity Price Breaks
FLEXEQUIP/VOSS 1/4 inch BSP Female Two Piece Hose Fitting with 60 Degree Cone and 19mm Slip Nut - Allow 2-3 Days
- Regular price
- $6.87 ex VAT
- Sale price
- $6.87
- Regular price
-
Description
FLEXEQUIP/VOSS Female Two Piece Hose Fitting with 60 Degree Cone and Slip Nut: These fittings are the most widely used female fitting in the UK and Ireland, designed for reliable performance in agricultural and standard hydraulic applications. Featuring a BSP thread with a 60 degree tapered cone, this fitting meets ISO 12151-6 (ISO 8434-6) standards, ensuring high efficiency in hydraulic systems by delivering leak-free connections and robust assembly reliability. Precision-engineered for perfect alignment between fittings and couplings, this fitting provides versatility, durability, and dependable performance built on decades of expertise.
Benefits: Precision engineered, provide perfect alignment, leakage and assembly reliability
Technical
| Hose Bore | = | 1/4 inch |
| Thread (d2) | = | G 1/4 inch |
| DN Size | = | 6mm |
| Total Length (lg) | = | 50mm |
| Length (lh) | = | 22mm |
| Cut Off (lx) | = | 17mm |
| Bore Size (dx) | = | 4mm |
| Nut Size (SW) | = | 19mm |
| Angle | = | * Straight degrees |
| Cone Angle | = | 60 degrees |
| Weight | = | 0.034 kg |
