D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days
D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days
D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days
D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days
D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days
D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days

SKU: D.158.DELTA

D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days

$189.82 ex VAT
$189.82
ex VAT
Not in stock

Quantity Price Breaks

3 $168.94
5 $159.45
9 $157.55
19 $155.65
49 $153.75
74 $151.86
99 $142.37
199 $140.47
249 $138.57
499 $136.67
999 $132.87
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days
D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days
D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days
SKU: D.158.DELTA

D158 Gates Delta Classic D-Section V-Belt (Uniset Match) - Allow 7-10 Days

$189.82 ex VAT
$189.82
ex VAT

Description

Gates Delta Classic™ D-Section V-Belt (Uniset Match): The Delta Classic™ V-belts have a classical V-shaped profiles and are built for reliability and durability. For use in all industries which use standard classical D section drives including compressors, pumps, aggregate screens, alternators, saws, milling, processing machines, fans etc...
The belts have anti-static properties to ISO 1813 (electrical resistance and antistatic standard) and are REACH, RoHS 2 and ATEX compliant.
High-strength polyester tensile cords provide resistance to flexing forces, fatigue and shock loads.
The belts are oil and moisture resistant and offer good grip and protection against abrasion.
Suitable for use in operating temperatures of -30 deg C to +70 deg C. All sizes in this range meet the Gates UNISET tolerance standards and can be installed without matching. The belts are manufactured in the EU and conform to the requirements of DIN 2215 / ISO 4184 / RMA IP22 / BS 3790.
Benefits: Good belt flexibility, stability and smooth-running operation, antistatic.

Technical

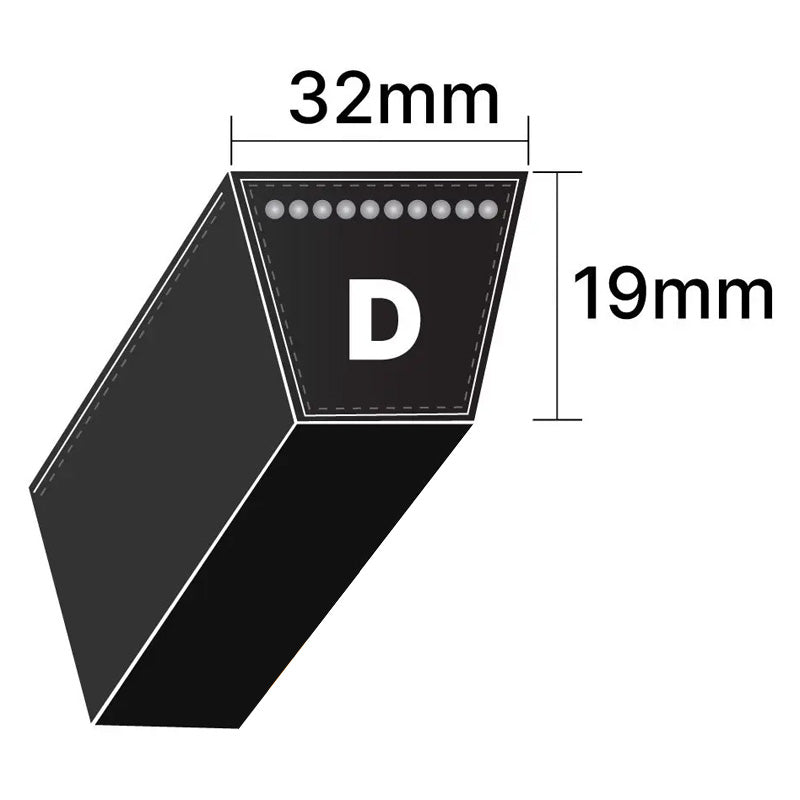

Belt Width Approx = 32mm
Belt Depth Approx = 19mm
Inside Length Approx = 158 inch = 4013mm
Belt Datum Length Approx = 160.95 inch = 4088mm
Belt Length Approx = 163 inch = 4140mm
