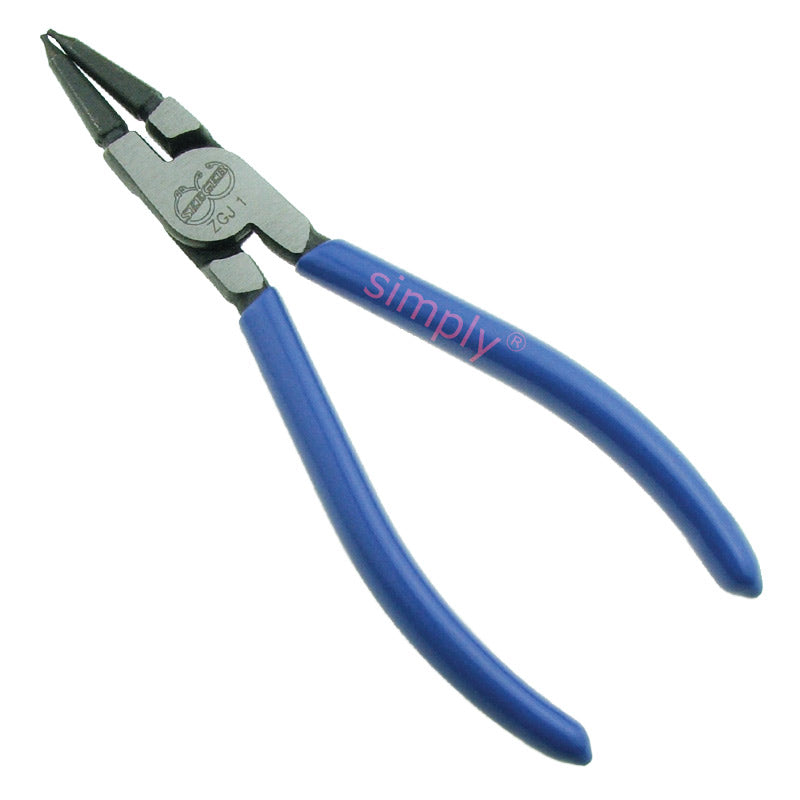

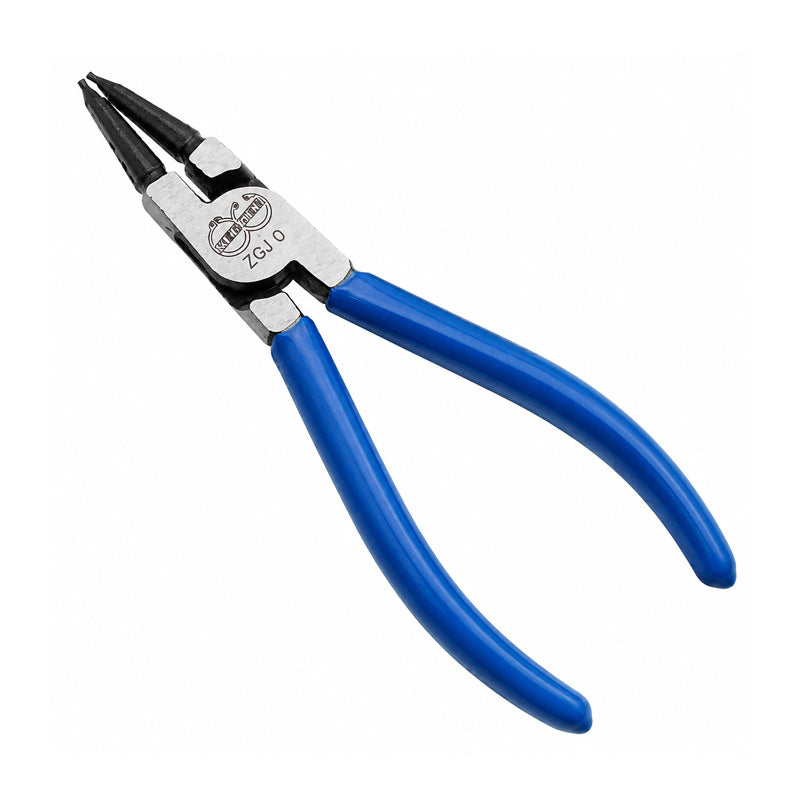

Professional Internal Straight Jaw Circlip Pliers for 10-25mm Circlips

SKU: CP-INT-SJ-J1

Professional Internal Straight Jaw Circlip Pliers for 10-25mm Circlips

$26.47 ex VAT
$26.47
ex VAT
Not in stock

Quantity Price Breaks

9 $23.56
19 $22.23
29 $21.97
39 $21.71
49 $21.44
75 $21.18
99 $19.85
249 $19.59
499 $19.32
999 $19.06
1999 $18.53
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Professional Internal Straight Jaw Circlip Pliers for 10-25mm Circlips
SKU: CP-INT-SJ-J1

Professional Internal Straight Jaw Circlip Pliers for 10-25mm Circlips

$26.47 ex VAT
$26.47
ex VAT

Description

Internal Circlip Pliers: Designed to permit easy assembly and disassembly of machinery and equipment that utilize circlips. Internal pliers with straight jaws are designed for applications where easy straight on access is available to the circlip, the bent jaw versions introduce flexibility into the access of these circlips, e.g. the clip could be part way down a hole - straight pliers would permit easy access however in instances where a shaft comes out of the hole the handles of straight pliers may foul on the shaft so in this instance bent pliers should be considered.

Benefits: Safe removal and assembly of circlips.
Tip: It is good practice to loosen circlips by lubricating them and tapping them with a small hammer or suitable implement to release them from their grooves prior to using circlip pliers, this will prevent overloading the tips of the pliers.
Safety: Circlips can fly at speed when released from shafts or housings, for your own safety please wear safety glasses when removing circlips.

Technical

Tip diameter A = 1.4mm
Tip length B = 23.72mm
Tip to pivot D = 40
Handle length E = 87.37mm
Handle to pivot F = 104.73mm
Overall length G = 143.85mm
Max tip opening H = 56.37mm
Max handle opening J = 170.75mm
Min Handle opening K = 45.21mm
