SKU: CNBH-44
Major Brand CNBH44 Heavy Duty Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $80.66 ex VAT
- Sale price
- $80.66
- Regular price
-
Not in stock
Quantity Price Breaks
3
$71.79
4
$67.75
9
$66.95
19
$66.14
29
$65.33
39
$64.53
49
$60.50
59
$59.69
249
$58.88
499
$58.08
999
$56.46
SKU:
CNBH-44
Major Brand CNBH44 Heavy Duty Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $80.66 ex VAT
- Sale price
- $80.66
- Regular price
-
Description
|
Heavy Duty Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |

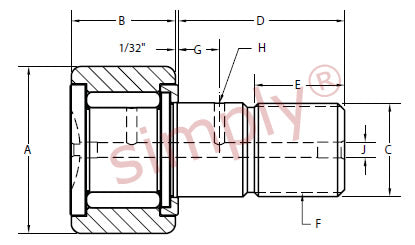

Technical
| A | = | 1.375 inch |
| B | = | 0.75 inch |
| C | = | 0.75 inch |
| D | = | 1.25 inch |
| E | = | 0.625 inch |
| Thread class 2A F | = | 3/4-16 UNF |
| G | = | 5/16 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 63/64 inch |
| Recommended bore | = | 0.75 inch |
| Recommended torque | = | 1250 lbf-in |
| Max static capacity | = | 8500 lbs |
| Basic dynamic rating | = | 3930 lbs |
