Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |

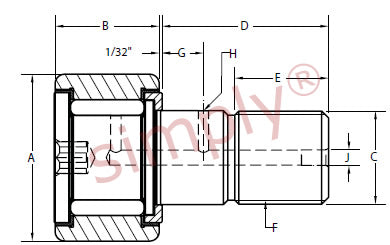

Technical
| A | = | 0.75 inch |
| B | = | 0.5 inch |
| C | = | 0.4375 inch |
| D | = | 0.875 inch |
| E | = | 0.375 inch |
| Thread class 2A F | = | 7/16-20 UNF |
| G | = | 1/4 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 39/64 inch |
| Recommended bore | = | 0.4375 inch |
| Recommended torque | = | 250 lbf-in |
| Max static capacity | = | 4130 lbs |
| Basic dynamic rating | = | 1660 lbs |
