SKU: CFS5V

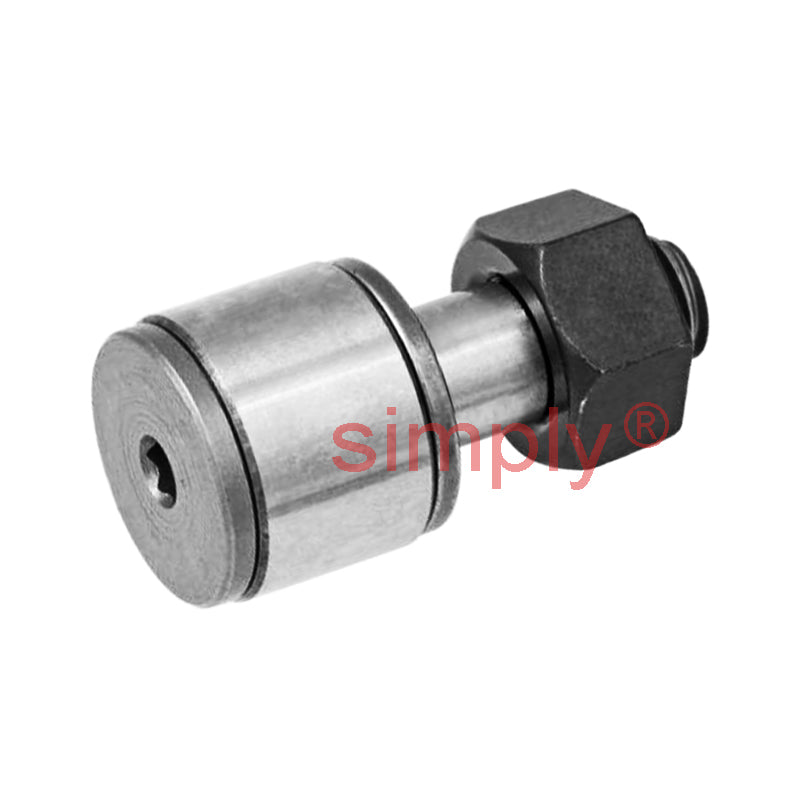

Budget CFS5V Full Complement Miniature Type Cam Follower with Cylindrical Outer and Hex Head 10x6x5mm M5x0.8 Thread
- Regular price
- $33.07 ex VAT
- Sale price
- $33.07
- Regular price
-
In stock
Quantity Price Breaks
3
$29.43
4
$27.78
9
$27.45
19
$27.12
29
$26.79
39
$26.46
49
$24.80
59
$24.47
249
$24.14
499
$23.81
999
$23.15
SKU:
CFS5V
Budget CFS5V Full Complement Miniature Type Cam Follower with Cylindrical Outer and Hex Head 10x6x5mm M5x0.8 Thread
- Regular price
- $33.07 ex VAT
- Sale price
- $33.07
- Regular price
-
Description
Miniature Cam Followers: This bearing has excellent needle-type rollers built into the outer ring, and it is designed compactly so that the outer ring's outside diameter is small compared to the stud diameter. It is used in electronics parts machinery, OA (Office Automation) equipment, and small index devices.
Benefits: Compact design, high load capacity, smooth and quiet operation.
The CFS Series has no oil hole, so is provided with prepacked grease.
Technical
| D | = | 10mm |
| C | = | 6mm |
| d1 | = | 5mm |
| G1 | = | 5mm |
| B | = | 8mm |
| G | = | M5x0.8mm |
| B1 | = | 18mm |
| B2 | = | 10mm |
| C1 | = | 1mm |
| H | = | 2mm |
| Basic Dynamic Load Rating C | = | 3080 N |
| Basic Static Load Rating C0 | = | 4600 N |
| Maximum Static Load | = | 1520 N |
| Weight | = | 7g |
