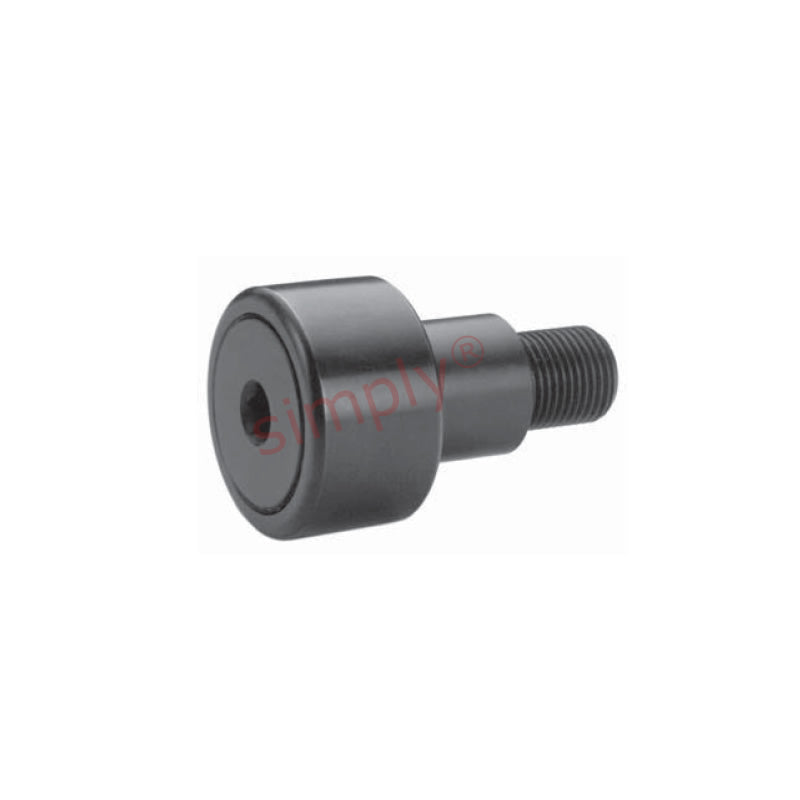

Major Brand CCNBE20SB Hex Head Crowned Cam Follower with Eccentric Stud 5/8 inch Outside Diameter Allow 7-10 Days

SKU: CCNBE-20-SB

Major Brand CCNBE20SB Hex Head Crowned Cam Follower with Eccentric Stud 5/8 inch Outside Diameter Allow 7-10 Days

$94.12 ex VAT
$94.12
ex VAT
Equivalent to: CCFE-5/8-SB CS-20-LWX CR-5/8-XBEC CRSBCE-10-1
Not in stock

Quantity Price Breaks

3 $83.77
4 $79.06
9 $78.12
19 $77.18
29 $76.24
39 $75.30
49 $70.59
59 $69.65
249 $68.71
499 $67.77
999 $65.88
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand CCNBE20SB Hex Head Crowned Cam Follower with Eccentric Stud 5/8 inch Outside Diameter Allow 7-10 Days
SKU: CCNBE-20-SB

Major Brand CCNBE20SB Hex Head Crowned Cam Follower with Eccentric Stud 5/8 inch Outside Diameter Allow 7-10 Days

$94.12 ex VAT
$94.12
ex VAT

Description

Cam Follower with Hex Head and Crowned O.D: Designed for applications where holding close tolerances of the mounting holes may prove difficult. The eccentric bushing is made of cold drawn steel so you can drill or dowel through the housing and into the stud for permanent locking. The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. This type of bearing is recommended wherever variations in dimensions of alignment of the tracks or cam might cause excessive angular loading. It reduces thrust on the rollers and wear.
Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench.
